Detail Information

Watt:	23w	254nm UV Output:	39W UVC
Application:	Water Or Gas	Length:	842mm
Diameter:	19±0.3mm	Model:	ZW130D19W-Z842
Ballast:	PH-1.2-150	Connection Spacing:	7.92mm
254nm UVC Lllumination:	380uw/cm 2	Materrial Of The Cap:	Ceramics Mounted
High Light:	Aluminium Base 842mm UV Light Tubes , Aluminium Base 842mm uv tube light for sterilization , 842mm uv tube light for sterilization 39W

Product Description

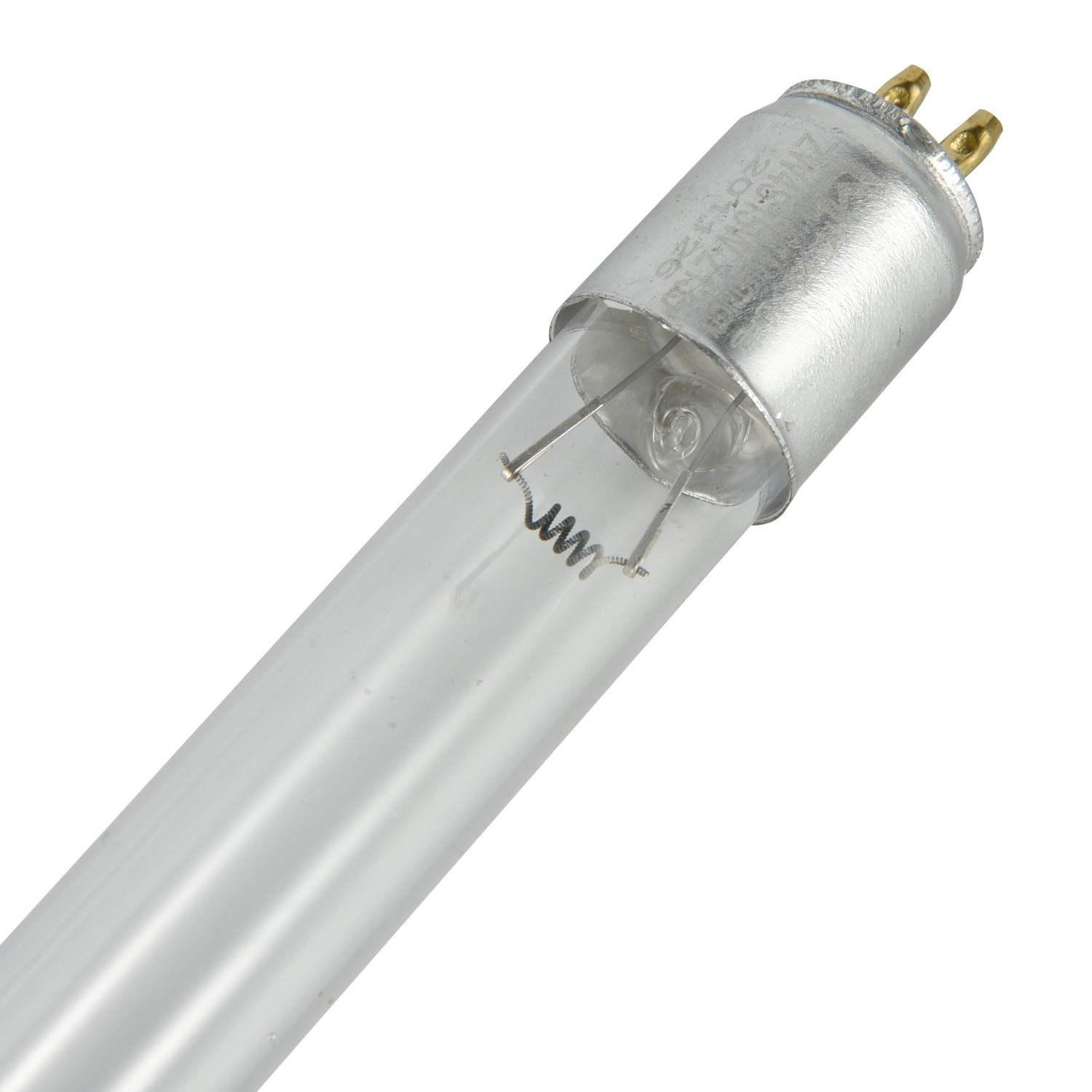

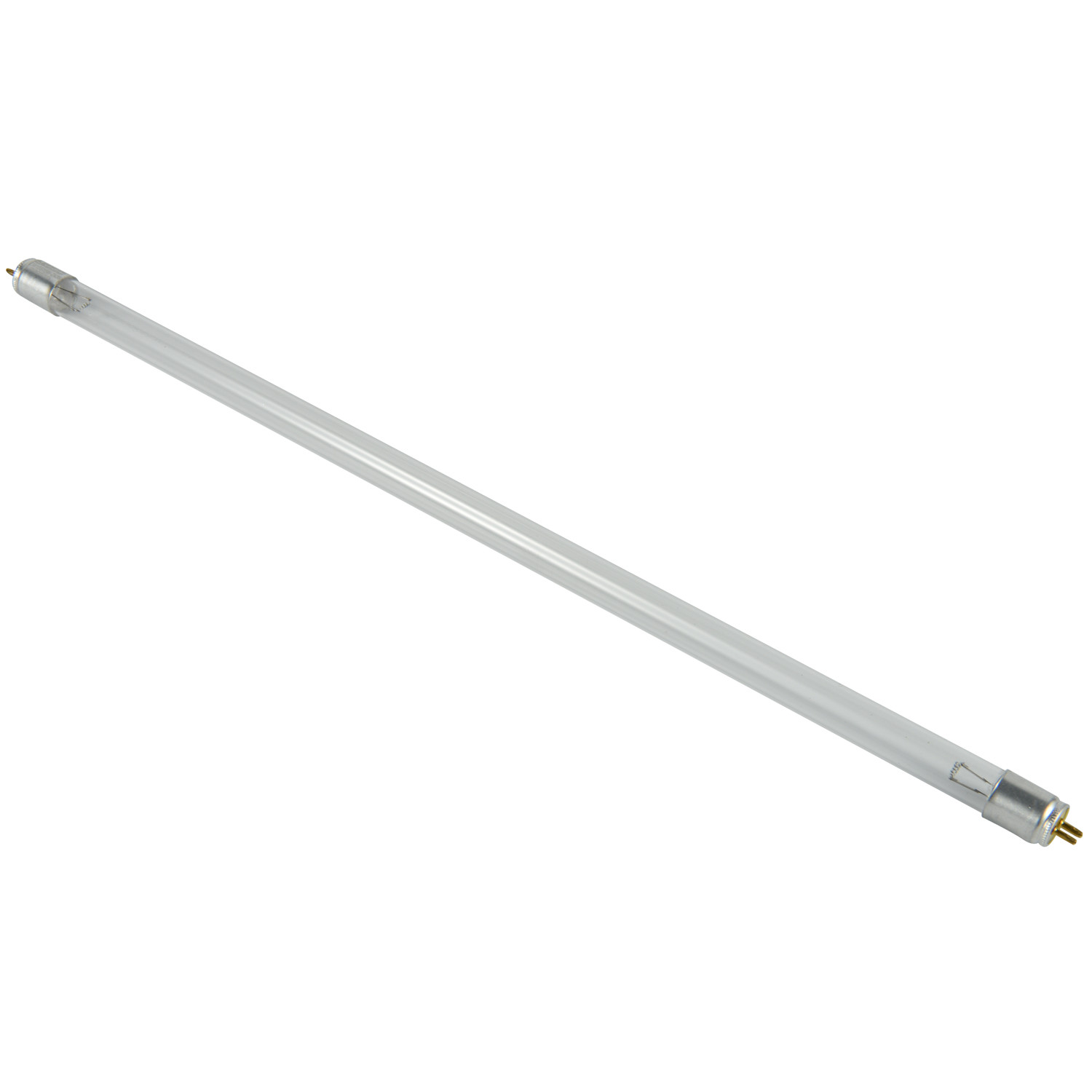

aluminium base 842mm UV Light Tubes Water Air Sterilization 39W Without Ozone

Specification

item	value
Warranty(Year)	1-year
Support Dimmer	no
Lighting solutions service	Sterilize UVC lamp
Lifespan (hours)	10000
Working Time (hours)	10000
Place of Origin	China

Product Presentation

Application:

1. Used in various household appliances such as disinfection cabinets,microwave ovens,air conditioners,air purifiers,etc. 2. Disinfection and sterilization of air and surface of objects in hospitals,schools,hotels,restaurants,homes and offices.

Product Name	UVC Mercury lamp
Material	Quartz tube
Power	130w
Voltage	220v
ballast	PH-1.8-200
Model	ZW130D19W-Z842
Style	Straight single-ended

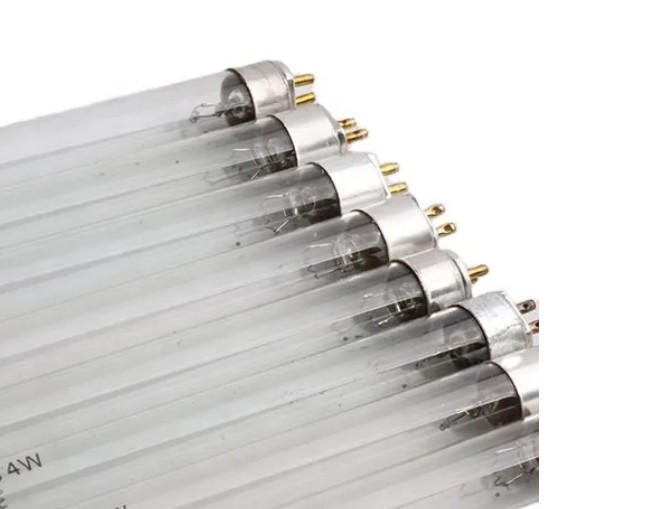

Detailed Images

The eight core strengths

1.Core filament electronic power processing technology. 2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology. 4.Solid mercury----Homemade special mercury fixation to improve light efficiency. 5.Unique patented rapid leak detection technology 6.Unique wick anti-vibration patented technology . 7.The most advanced automated processing equiment in China. 8.Cost advantage and perfect pre-sales and after-sales service.

1.Top quality quartz tube 2.>93% ultraviolet light transmittance 3. High temperature resistance 4. Corrosion resistance 4. Patented anti-fouling technology for the outer coating film of the lamp or quartz sleeve to ensure that the surface of the lamp

is not affected by external environmental pollution.

1.High quality adapter

2.Completely connection

3.Stable and reliable

4.High effeciency

1.Unique inner coating and outer coating technology 2. The internal coating technology ensures that the maximum illuminance attenuation of the ultraviolet lamp during the life of the tube does not exceed 15% Uniform and dense demoulding 2. After 600 degrees high temperature baking, it still maintains continuous density 3. Three layers of protection

CORE TECH

UNIQUE "LAMP HEART TECHNOLOGY"

UV Light & Electricity uses the core filament, electronic powder processing technology, and electronic powder decomposition technology. The filament electronic powder is the "heart of the lamp tube", with strong resistance to bombardment, with up to 10,000 switching times, ensuring the long life of the lamp. 1. The particle size is normally distributed, and the adhesion ability is strong 2. High Ba content, high emission density, strong high temperature resistance 3. The content of Ca is appropriately increased, and the bombardment resistance is stronger 4. Add rare earth oxides to extend the service life

How does UV light affect bacteria?

Microorganisms are simple organic structures that can easily absorb UV-C wavelengths, causing
photodissociation (destruction). Microbial DNA (deoxyribonucleic acid) is first adversely affected due to its weaker molecular
bonds. Within a hundredth of a second, it suffered irreparable damage. The subsequent loss of genetic instructions can cause the
cell to die and/or fail to replicate, making it harmless. Continuous exposure will cause uninterrupted degradation, such as the
sun, which will only be significantly faster.

Does UV-C lamp produce ozone?

No, but UVC does provide exceptional air conditioning, just like the sun is outdoors. The UVC fixture
is an air conditioning component in addition to other system components. These components include filters, coils, heating cores,
fans, dampers, humidifiers, etc. All of these components are designed to provide specific functions for treating the air in the
occupied space.

Packaging and Delivery Time
1.Packed in carton.
2.Delivery time :Around 5-7 working days after we confirm the payment.
3.Package is made accoring to the customer's requirement.

FAQ

Q1. Can I have a sample first before bulb order?

A: Yes, we are pleasure provide samples for you.

Q2. What's your delivery date?

A: 3-5 days for samples
15-20 days for bulb order

Q3. What's your payment terms?

A: 100% T/T in advance if amount less than USD5,000.
30% T/T in advance, 70% before loading if amount more than USD5,000.

Q4. What's your shipping ways?

A: By Express:TNT, UPS, DHL, FedEX, EMS, etc... Door to door service
By Air: Please let us know your nearest airport.
By Sea: Please let us know the delivery port.

Q5. What's your MOQ?

A: Our MOQ is 100pcs

Q6. Can I use my own design package and Logo on the products?

A: Yes, We can provide OEM service for customers

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	UV, Yoway
Certification:	CE,ROSH
Model Number:	ZW130D19W-Z842

Minimum Order Quantity:	10 pcs
Price:	$6-$45/SET
Packaging Details:	paper box packing
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000pcs per month

Aluminium Base 842mm UV Light Tubes For Sterilization 39W Without Ozone
