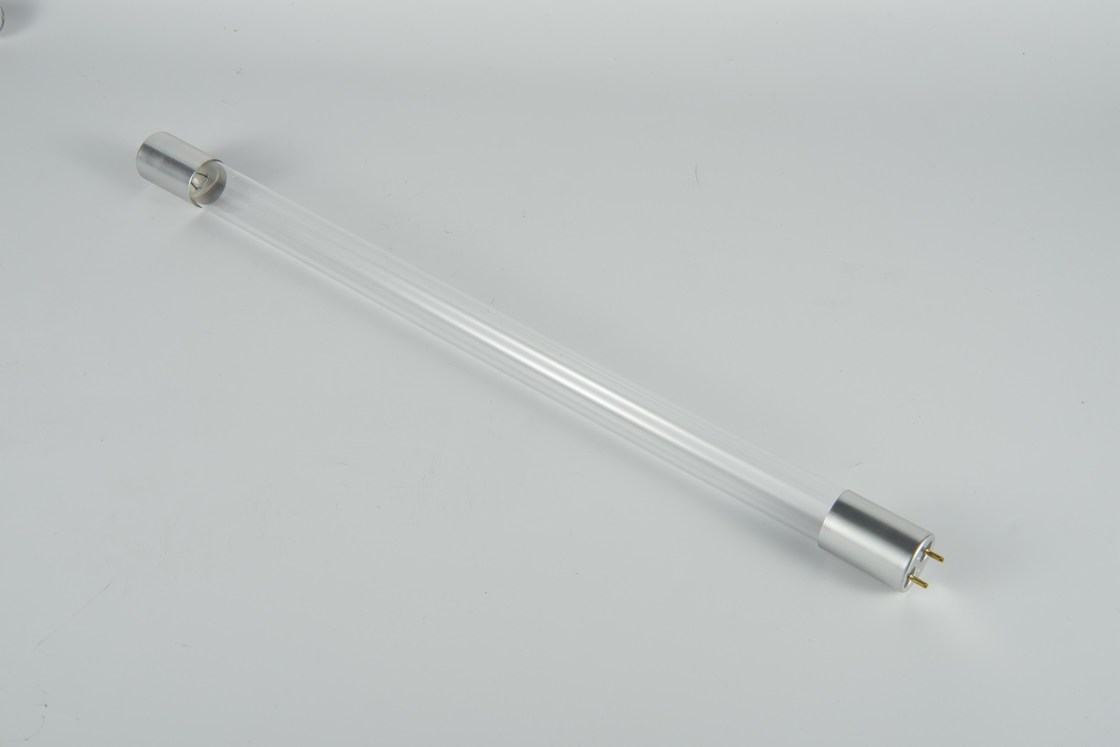

1154mm Single Ended 150w Quartz Ultraviolet Light Lamp For Disinfection

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: ZW150D15Y-Z1154
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Type: 150w Lamp Cap: Ceramic
Fuction: Disinfection , Kill Viruses Filament: 3270
Length: 1154mm Diameter: 15mm
Ozone: Ozone Model: ZW150D15Y-Z1154
Pins: 4pin Glass Tube: Quartz Glass With Ozone
Current Of Lamp: 840
High Light:

Single Ended 150w Quartz Ultraviolet Light


1154mm Quartz Ultraviolet Light


Single Ended 150w quartz lamp for disinfection

Product Description

single ended 150w Quartz Ultraviolet Light For Waste Water Disinfection


Quartz Ultraviolet Light 150w 253.7nm UVC Lamps Manufacturer Disinfection Lamp For Waste Water Treatment

The UVC lamp is made by quartz tube which can penetrate the ultraviolet wavelength 254nm,ultraviolet wave 185nm produces ozone which be dissolved in water to destroy the walls of the cells of microorganism ,and thereby kill them immediately.
Ultraviolet technology has been one of the most effective methods of water treatment and air purification.UV germicidal lamp isthe ideal solution for water disinfection application in a safe way,without using any chemicals.
1154mm Single Ended 150w Quartz Ultraviolet Light Lamp For Disinfection 01154mm Single Ended 150w Quartz Ultraviolet Light Lamp For Disinfection 11154mm Single Ended 150w Quartz Ultraviolet Light Lamp For Disinfection 2

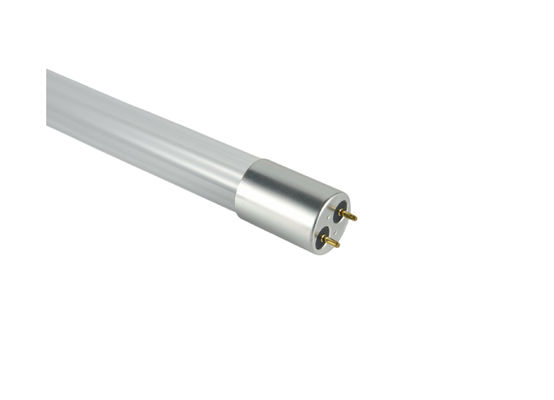

1.Four-Pin, single ended UV germicidal lamps.
2.Made of high quality quartz.
3.Average lamp life is 10,000 hours.
4.Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.
5.Quartz sleeves and ballasts are available.



Number Item Code Rated value Unit Deviation range
1 Wattage of lamp PL 150 W ±15%
2 Voltage of lamp UL 145 V ±10
3 Current of lamp* IL 850* mA
4 254nm intensity distance=1m   ≥1950 μw/cm2
5 Settling time of lighting T 1 min
6 Average lifetime H >8000 h
Product Presentation
1.Used in various household appliances such as disinfection cabinets,microwave ovens,air conditioners,air purifiers,etc. 2.Disinfection and sterilization of air and surface of objects in hospitals,schools,hotels,restaurants,homes and offices.
Product Name
UVC Germicidal lamp
Quartz tube
Type of Lamp-house
Detailed Images

The eight core strengths

1.Core filament electronic power processing technology. 2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology. 4.Solid mercury----Homemade special mercury fixation to improve light efficiency. 5.Unique patented rapid leak detection technology 6.Unique wick anti-vibration patented technology . 7.The most advanced automated processing equiment in China. 8.Cost advantage and perfect pre-sales and after-sales service.

As the provider of air purifier, UV sterilizer, and UV germicidal lamp, we are committed to provide our customers with options for UV disinfection solution with the diversified products that can meet the needs of different customers. The UV sterilizer includes UV air sterilizer, UV sterilizer box, UV sterilizer wand, UV sterilizer for Aquarium & swimming pool, etc. The UV germicidal lamp includes double-ended straight tubes, single-ended straight tubes, single-ended H tubes, high-power water treatment lamps, code cathode lamps, electronic ballasts, sewage treatment equipment, etc.


Our pursuit for the customer are always on-time delivery, qualified & profitable products, and the best service.
