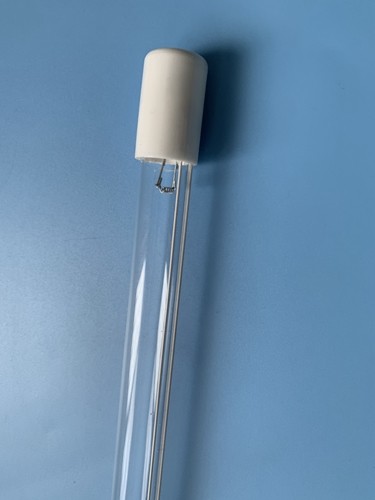

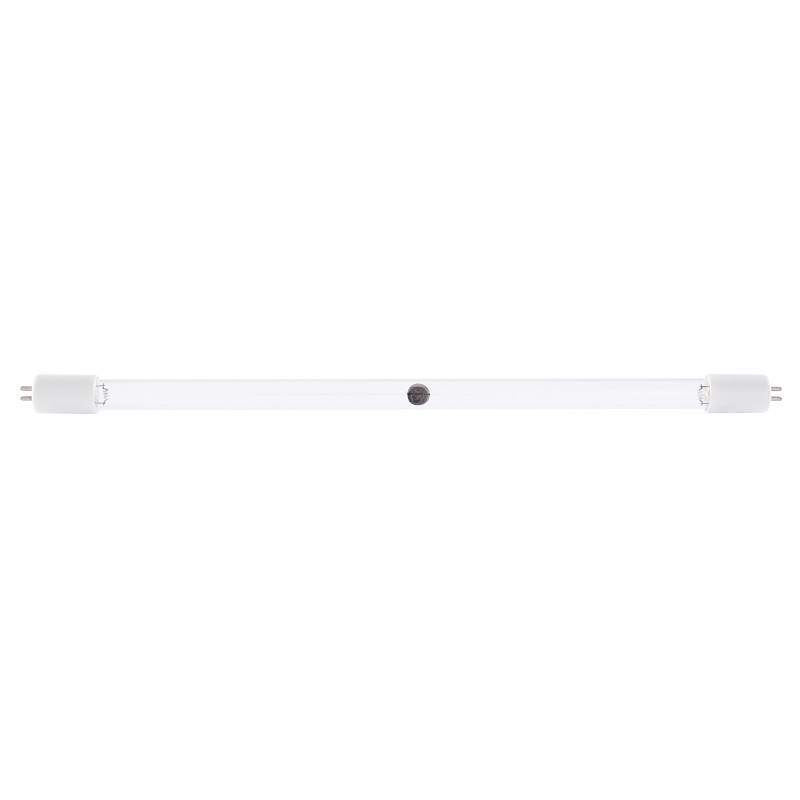

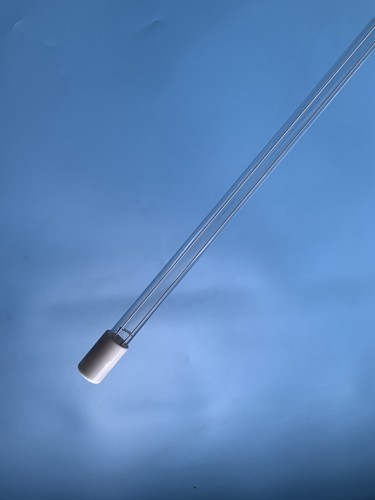

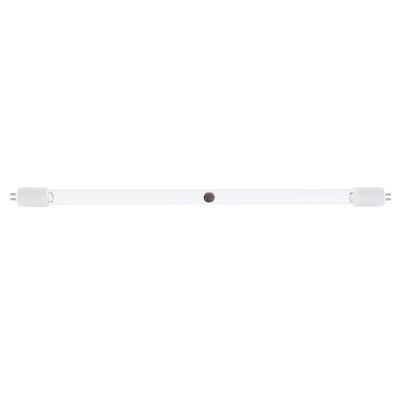

Amalgam UV Lamp 28W 4 Pins UV Sterilization UV Light Tubes 550mm Kill Mite

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: ZW28D15Y-Z550
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Watt: 28W Lamp Voltage: 61.7
Life Span: 8000 Hours Length: 550mm
Diameter: 15±0.3mm Current: 381
Model: ZW28D15Y-Z550 Ballast: RL11-425-40
Wattage Of Lamp: 26.2 Materrial Of The Cap: Ceramics Mounted
54Irradiation Intensity: 78
High Light:

Amalgam UV lamp 28W 4 Pins

,

Amalgam UV lamp UV Sterilization 550mm

,

28W Amalgam UV lamp 550mm


Product Description

SINGLE ENDED FOUR PINS SUPER POWER
28W UVC LAMPS



Number Item Code Rated value Unit Deviation range
1 Wattage of lamp PL 26.2 W ±15%
2 Voltage of lamp UL 61.7 V
3 Current of lamp* IL 381* mA
4 254nm intensity distance=1m   ≥78 μw/cm2
5 Settling time of lighting T 10 min
6 Average lifetime H >8000 h



Product Presentation
Application:
1.Used in various household appliances such as disinfection cabinets,microwave ovens,air conditioners,air purifiers,etc. 2.Disinfection and sterilization of air and surface of objects in hospitals,schools,hotels,restaurants,homes and offices.


Product Name
UVC Germicidal lamp

Material
Quartz glass with ozone

Power
28w

Voltage
110/220v

Type of Lamp-house
T5G10Q

Filament
9711




Sealed gas
Ar
ITEM NO./规格型号 PRODUCT PICTURE/产品图片 Dia/管径(mm)
4W ZW4D15Y(W)-Z135   ∅15
5W ZW5D15Y(W)-Z150   ∅15
10W ZW10D15Y(W)-Z212   ∅15
14W ZW14D15Y(W)-Z287   ∅15
15W ZW15D15Y(W)-Z303   ∅15
17W ZW17D15Y(W)-Z356   ∅15
23W ZW23D15Y(W)-Z463   ∅15
28W ZW28D15Y(W)-Z550   ∅15
37W ZW37D15Y(W)-Z793   ∅15
40W ZW40D15Y(W)-Z851   ∅15
55W ZW55D15Y(W)-Z1149   ∅15
65W ZW65D15Y(W)-Z1554   ∅15
75W ZW75D15Y(W)-Z1554   ∅15

Lamp adapters

There are four : Plastic , Ceramic, Aluminium (blue and silver) lamp adapters for your choice
Detailed Images

The eight core strengths

1.Core filament electronic power processing technology. 2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology. 4.Solid mercury----Homemade special mercury fixation to improve light efficiency. 5.Unique patented rapid leak detection technology 6.Unique wick anti-vibration patented technology . 7.The most advanced automated processing equiment in China. 8.Cost advantage and perfect pre-sales and after-sales service.

The disinfection principle of ultraviolet light?
There are many ways to demonstrate, sample or measure many things that happen. One is to use a contact plate containing malt agar. Before installing the UV-C, please lightly touch the surface with the board. Then it was incubated for approximately 96 hours. After installing UV-C, this step will be performed again at the same location. People often see a
reduction in growth of organisms by more than 98%? Different bacterial growth media can be used to similarly sample the water pan
and its water. Some other methods are:
o A significant reduction in mold can be seen in a short period of time.
o It has been shown that in less than 30 days, the coil pressure drop has dropped by more than 10% (depending on surface
cleanliness and water activity). Of course, system airflow and capacity usually increase accordingly.
o The drain pan and the water in the drain pan have become cleaner.
o All field wire surfaces, such as insulation materials, etc., will start to look cleaner.
o Most of the related odors produced by irradiated pollutants disappeared.
o Many indoor air quality complaints have been recorded as reductions.
Amalgam UV lamp 28W 4 Pins UV Sterilization 550mm Tubes  kill mite 21
How does UV light affect bacteria?
Microorganisms are simple organic structures that can easily absorb UV-C wavelengths, causing
photodissociation (destruction). Microbial DNA (deoxyribonucleic acid) is first adversely affected due to its weaker molecular
bonds. Within a hundredth of a second, it suffered irreparable damage. The subsequent loss of genetic instructions can cause the
cell to die and/or fail to replicate, making it harmless. Continuous exposure will cause uninterrupted degradation, such as the
sun, which will only be significantly faster.
Does UV-C lamp produce ozone?
No, but UVC does provide exceptional air conditioning, just like the sun is outdoors. The UVC fixture
is an air conditioning component in addition to other system components. These components include filters, coils, heating cores,
fans, dampers, humidifiers, etc. All of these components are designed to provide specific functions for treating the air in the
occupied space.
Amalgam UV lamp 28W 4 Pins UV Sterilization 550mm Tubes  kill mite 22
Certificate



FAQ
1.Are you a factory or trading company?
We are a professional factory.

2.Where is your factory located?How can I visit there?
Our factory is located in Ningbo City,Zhengjiang Province,China,You can fly to ningbo airport directly,Warmly welcome
all the clients at home and broad to visit us!


3. Can I get some samples?
We are happy to offer samples for you to check and test.

4.Do you have any MOQ limit?
Low MOQ,1pcs for sample checking is available.

5.What about the lead time?
15days after receive your payment.

6.How does your factory do regarding quality control?
"Quality is priority."Youwei people always attaches more importance to QC from the very begining to the very end.Our factory has
gained CE,ISO9001,RoHS,SGS authentication.


7.About customized service?
We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.

8.About after-sale service?
Any quality issue, once confirmed, we will compensate our customer.
