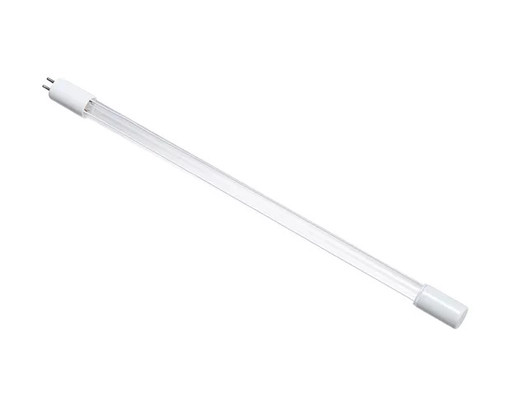

Single Ended 40W UV Disinfection Ultraviolet Tube Light Virus Germs Disinfection

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: ZW40D15W-Z1199
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Type: 40w Name: Single Ended Shape Bulb
Fuction: Disinfection , Kill Viruses 254nm Intensity: 1950
Length: 1199mm Item: Straight
Voltage Of Lamp: 145 Model: ZW40D15W-Z1199
Pins: 4pin Wattage Of Lamp: 150
High Light:

Single Ended 40W uv disinfection light


ultraviolet tube light Virus Germs Disinfection


Single Ended 40W ultraviolet tube light

Product Description

Single Ended 40W UVC Ultraviolet Light Lamp Virus Germs Disinfection
The UVC lamp is made by quartz tube which can penetrate the ultraviolet wavelength 254nm,ultraviolet wave 185nm produces ozone which be dissolved in water to destroy the walls of the cells of microorganism ,and thereby kill them immediately.
Ultraviolet technology has been one of the most effective methods of water treatment and air purification.UV germicidal lamp isthe ideal solution for water disinfection application in a safe way,without using any chemicals.
1. Four-Pin, single ended UV germicidal lamps.
2. Made of high quality quartz.
3. Average lamp life is 10,000 hours.
4. Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.
Quartz sleeves and ballasts are available.
Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)
  ITEM NO./规格型号 PRODUCT PICTURE/产品图片 Dia/管径(mm) MOQ(MOQ是否需要更改) PORT
单 端 直 管/Singleended straight pipe 4W ZW4D15Y(W)-Z135   ∅15 100 NINGBO
5W ZW5D15Y(W)-Z150   ∅15 100 NINGBO
10W ZW10D15Y(W)-Z212   ∅15 100 NINGBO
14W ZW14D15Y(W)-Z287   ∅15 100 NINGBO
15W ZW15D15Y(W)-Z303   ∅15 100 NINGBO
17W ZW17D15Y(W)-Z356   ∅15 100 NINGBO
23W ZW23D15Y(W)-Z463   ∅15 100 NINGBO
28W ZW28D15Y(W)-Z550   ∅15 100 NINGBO
37W ZW37D15Y(W)-Z793   ∅15 100 NINGBO
40W ZW40D15Y(W)-Z851   ∅15 100 NINGBO
55W ZW55D15Y(W)-Z1149   ∅15 100 NINGBO
65W ZW65D15Y(W)-Z1554   ∅15 100 NINGBO
75W ZW75D15Y(W)-Z1554   ∅15 100 NINGBO

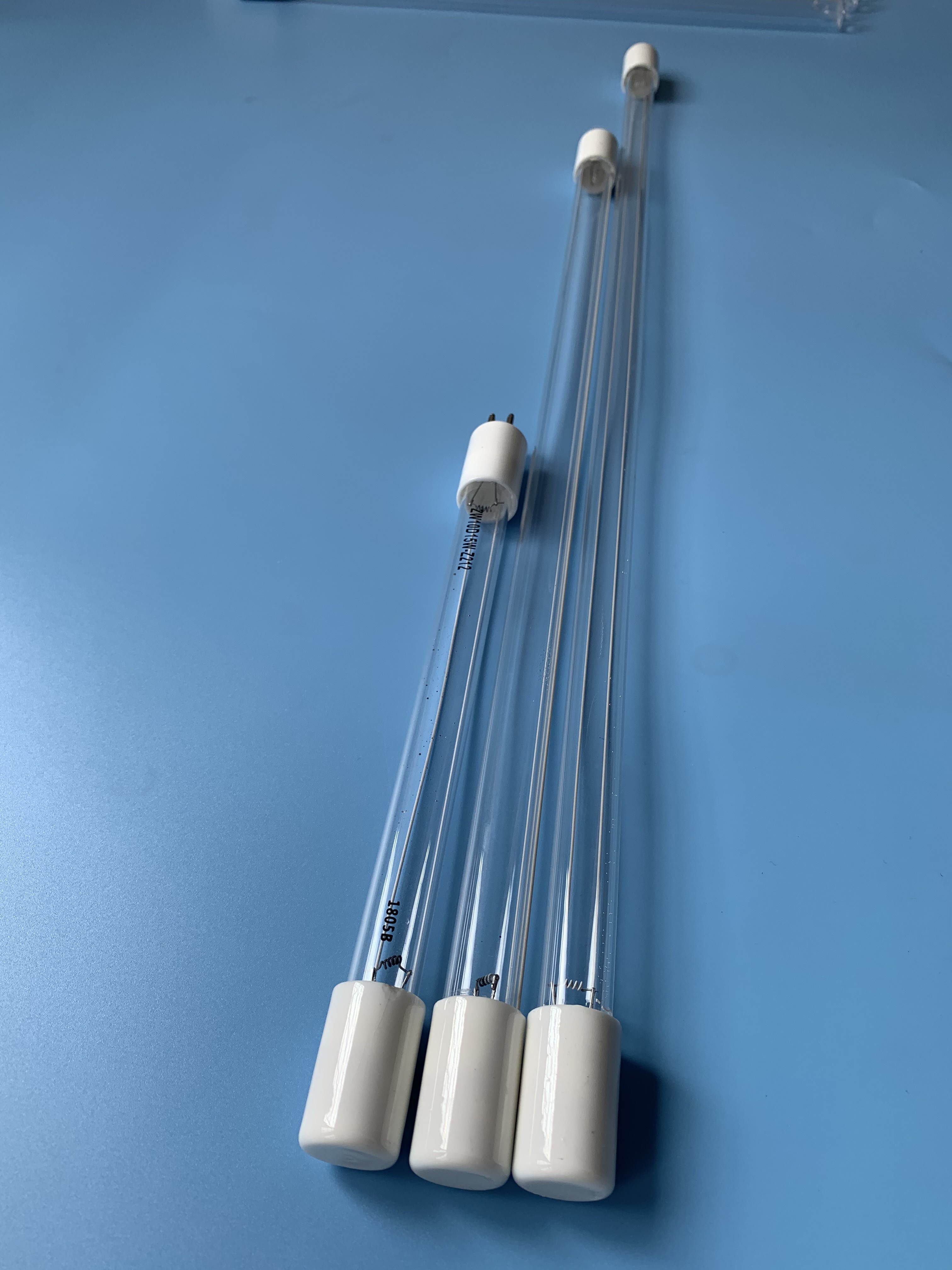

Product Display
  Model ZW40S15W-Z1199
Tube 15mm
Length 1199mm
Power 40W
Current 180A
Voitage at 34V

UV output at


150μw/ cm2
Product Presentation
1.Used in various household appliances such as disinfection cabinets,microwave ovens,air conditioners,air purifiers,etc. 2.Disinfection and sterilization of air and surface of objects in hospitals,schools,hotels,restaurants,homes and offices.
Product Name
UVC Germicidal lamp
Quartz tube
Type of Lamp-house

Lamp adapters

There are four : Plastic , Ceramic, Aluminium (blue and silver) lamp adapters for your choice
