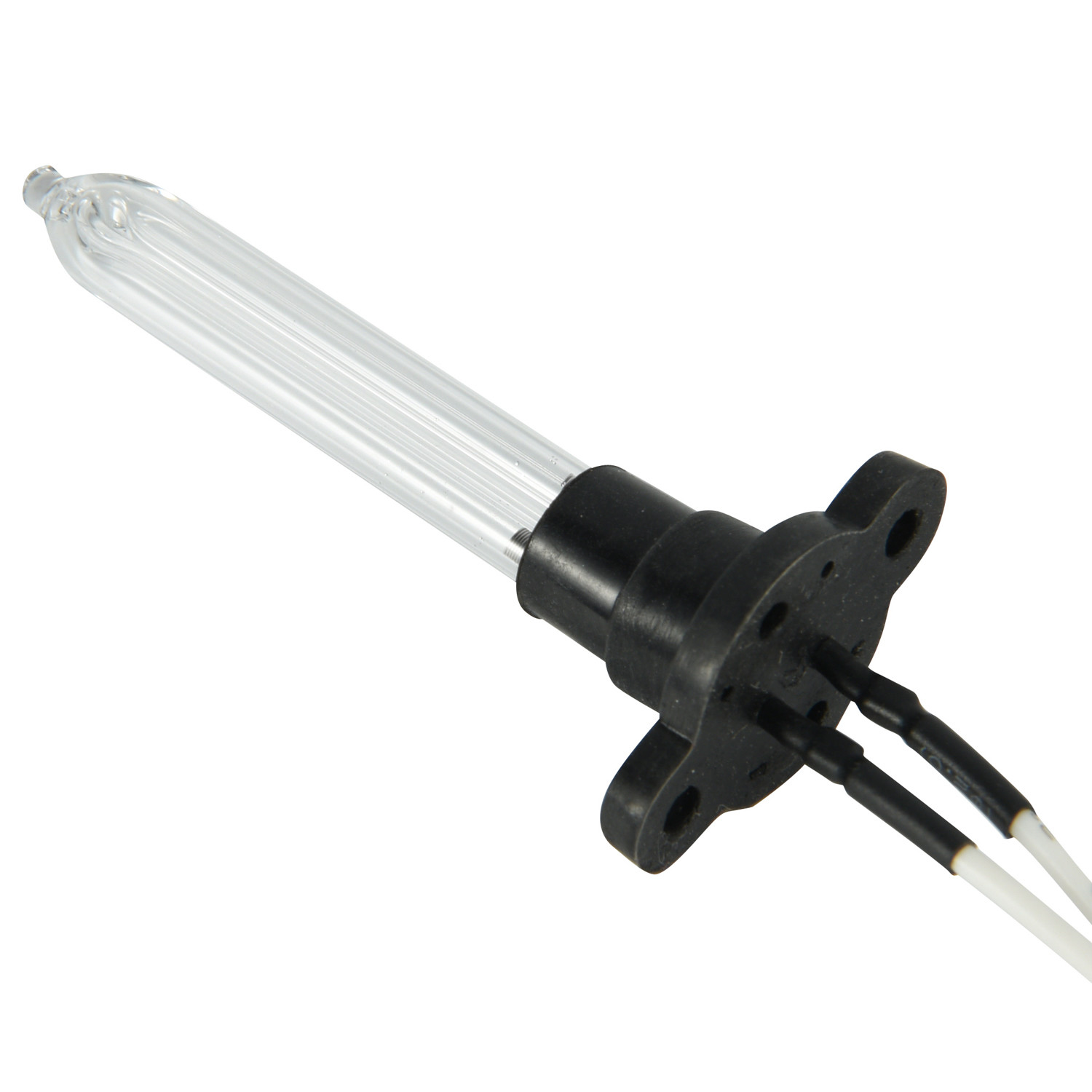

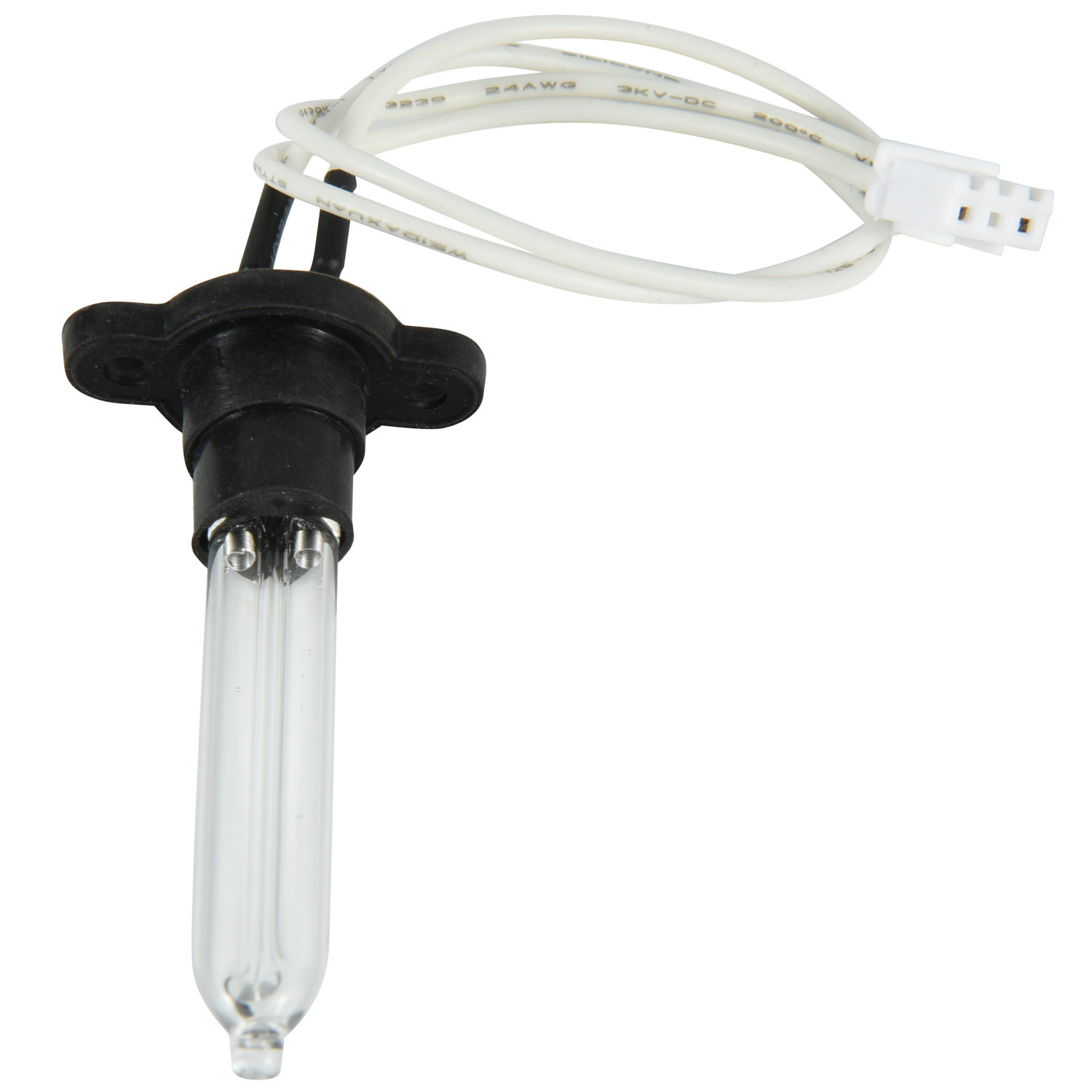

Name: 55mm Quartz Tube UVC Germicidal Tubes Cold Cathode Uv Lamp 220v
Brand: UV, Yoway
SKU: ZW2D5Y-Z55
Price: 6 USD
Availability: InStock
Rating: 4.5 (165 reviews)

Detail Information

Wavelength(nm):	254nm	Rated Power:	0.6W~1.2W
Current:	4mA-6mA	Type:	Cold Cathode UV Germicidal Lamps
Length:	55mm	Rated Life:	20000h
Voltage:	220V	Power Supply:	DC
Light Source:	Quartz Tube	Lamp:	ZW2D5Y-Z55
Material:	99% Purity Quartz Tube Lengthened UV	Type Model:	Cold Cathode High UV, High Power
High Light:	55mm UVC Germicidal Tubes , Cold Cathode UV Lamp 220V , 55mm Quartz Tube Cold Cathode UV Lamp

Product Description

Uvc Lamp Cold Cathode customized Cold Cathode UV Lamp Water Treatment

High UV, Customized Cold Cathode UV Lamp

Water Treatment Ultraviolet Germicidal Lamp

mini size 30mm -200mm
Ultraviolet (UV) light is a type of radiation. It has more energy than radio waves or visible light but less energy than X-rays or gamma rays.

You can be exposed to UV light via natural sunlight or through human-made sources like tanning beds.

UV light has been used as a means to kill germs like bacteria and viruses. You may have also heard of its use for killing SARS-CoV-2, the new coronavirus that causes COVID-19.

In this article, we’ll explore how UV light is used to kill germs, how effective it is at eliminating the new coronavirus, and more.

Will Ultraviolet (UV) Light Kill the Coronavirus?
claim
UV light can destroy the novel coronavirus that causes COVID-19.

Find
real. Specifically, UVC light has been shown to rapidly inactivate the novel coronavirus SARS-CoV-2. It can be an effective disinfectant, but needs to be used correctly to avoid skin and eye damage.
Experiments have shown that UVC light can inactivate the new coronavirus.

Ultraviolet (UV) light is produced by the sun and special lamps. There are three types of UV rays: UVA, UVB, and UVC. UVC light includes light wavelengths from 200 to 280 nanometers. These UVC wavelengths have the most energy of the three types of UV light. Energy at UVC wavelengths is absorbed and rapidly destroyed by the genetic material inside viruses and other microorganisms, rendering them inactive.

The main UVC lamps produced are:
Ozone-free lamps: mainly radiate ultraviolet rays of 253.7nm (nanometers).
There are ozone type lamps: mainly radiate 253.7nm (nanometer) and 185nm (nanometer) ultraviolet rays.

Tube outer diameter: Φ15mm, Φ19mm, Φ25mm (T5, T6, T8)

Tube length: 118mm-2000mm

Lamp holder type: single-ended four-pin, single-ended two-pin, double-ended two-pin, double-ended single-pin specifications.

Tube material: Quartz glass

Ballast input voltage optional: 12V, 24V (DC DC safe voltage), 110V, 220V (AC AC voltage)

Executive standard: GB 19258-2012

Product Descriptio
COLD CATHOLD UV LAMP
LIFE SPAN : 20000 HOURS EXTREMELY LONG LIFE
CUSTOMIZED 1W-8W
OZONE /OZONE FREE OPTIONS

Basic information

Features

1.COLD cathode electrode, preheating start,average service life up to 10000 hours;

2.The brackets and lamp holders of flurescent lamps of the same specification can be used;different glass tube diameters and lamp

holders can be used according to customer needs;

3.Ceramic lamp holder,high oxidation,radiation resistance.

Application range

1.Used in various household appliances such as disinfection cabinets,microwave ovens,air conditioners,air purifiers,etc.

2.Disinfection and sterilization of air and surface of objects in hospitals,schools,hotels,restaurants,homes and offices.

UVC Is Efficient and SafeUVC Germicidal Fixtures increase the value of all air conditioning and air-circulating systems by:
· Maximizing system efficiency
· Prolonging blower life
· Providing healthier air to breathe
Treating air that passes through an HVAC unit with ultraviolet light will reduce, or eliminate, DNA-based airborne contaminants (bacteria, viruses, mold spores, yeast, protozoa), and provide much healthier air to breathe. UVC Germicidal Fixtures are a labor-free solution that will not harm occupants, equipment or furnishings because they produce no ozone or secondary contaminants. For more than 70 years, tens of thousands have been safely installed in hospitals, clinics, processing plants, commercial offices, manufacturing sites and other commercial facilities and multi-and single-family residences around the world.
 APPLICATION PHOTOS
The lamp radiates short-wave ultraviolet rays mainly at 253.7nm and has a strong bactericidal effect. The lamp is suitable for air purification and disinfection in cars,disinfection boxes,sterilizing bags , disinfection carbinet,etc .
U shape UV lamp for disinfection bag For portable UV sterilizerDisinfection bag can sterilize small things ,like watches,cell phones, cups, bowls,towels, underwears,ets.
99.99% disinfection rate
5-10 minutes
Portable sterilizer can sterilize small things ,like watches,cell phones, cups, bowls,towels, underwears,ets. 99.99% disinfection rate

5-10 minutes
Detailed Images
Product detail drawing
The hot cathode ultraviolet lamp uses tungsten wire as the cathode body, and its surface is coated with low work function metal oxide. During the working life of the hot cathode ultraviolet lamp, the oxide has chemical and electrochemical "poisoning" problems, so the lamp life is generally only more than 4000 hours. The cathode ultraviolet lamp is made of pure metal sheet, and there is no poisoning problem. Therefore, its life span is 5-10 times longer than that of hot-cathode lamp, which can reach more than 20,000 hours.
Ordinary ultraviolet lamps with new lamp radiation intensity greater than 90uW/cm are qualified. The radiation intensity of cold cathode ultraviolet disinfection lamps is more than 200uW/cm, which is generally more than twice that of hot cathode disinfection lamps. The cold cathode and hot cathode have different shapes
The size of cold cathode ultraviolet lamps is much smaller than that of hot cathode ultraviolet lamps, especially when the diameter of the lamp tube is small, it can be processed into U-shaped, straight, O-shaped or disc-shaped lamps. The uses are also

diversified, such as portable sterilizers such as mobile phone sterilization boxes, toothbrush sterilization boxes, and sterilization kits.
Introduction of product advantages
Quartz tube
1.Top quanlity quartz tube

2.>93% ultraviolet light transmittance

3. High temperature resistance

4. Corrosion resistance
Cold cathode
The energy consumption of cold cathode and hot cathode is different Because the current of the cold cathode is relatively small and the direct current can be used, under the same sterilization effect, the cold cathode saves more energy than the hot cathode!
Mini size
The size of cold cathode ultraviolet lamps is much smaller than that of hot cathode ultraviolet lamps, especially when the diameter of the lamp tube is small, it can be processed into U-shaped, straight, O-shaped or disc-shaped lamps. The uses are also diversified, such as portable sterilizers such as mobile phone sterilization boxes, toothbrush sterilization boxes, and sterilization kits.
20000 hours service time
The hot cathode ultraviolet lamp uses tungsten wire as the cathode body, and its surface is coated with low work function metal oxide. During the working life of the hot cathode ultraviolet lamp, the oxide has chemical and electrochemical "poisoning" problems, so the lamp life is generally only more than 4000 hours. The cathode of Nenboda cold-cathode ultraviolet lamp is made of pure metal sheet, and there is no poisoning problem. Therefore, its life span is 5-10 times longer than that of hot-cathode lamp, which can reach more than 20,000 hours.
Product Presentation
PARAMETERS

Product Name

			U SHAPE COLD CATHODE UV LAMP

Material

			QUARTZ TUBE
			SILICON SLEEVE

Power

			2W (1-8W COSTOMIZED )

Voltage

			12V OR AS REQUIRED

Type of Lamp-house

			SILICON

Model

			ZW3D5Y-U78

Style

			U SHAPE (H/O/OTHER SHAPE CUSTOMIZED )

Size introduction and size picture

			Lamp length

			packing length

			5cm

			10*5*5cm

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	UV, Yoway
Certification:	CE,ROSH
Model Number:	ZW2D5Y-Z55

Minimum Order Quantity:	10 pcs
Price:	$6-$45/SET
Packaging Details:	paper box packing
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000pcs per month
