| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | UV, Yoway |
| Certification: | CE,ROSH |
| Model Number: | ZW40D17Y-H533 |
| Minimum Order Quantity: | 10 pcs |
| Price: | $6-$45/SET |
| Packaging Details: | paper box packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per month |
| Name: | H Shape Bulb | Socket: | 2G11 |
|---|---|---|---|
| Core: | 9711 | Length: | 533mm |
| Diameter: | 17±0.3mm | Model: | ZW40D17Y-H533 |
| Ballast: | YW-HCS-102A | Connection Spacing: | 11±0.1mm |
| Quartz: | Amalgam | Materrial Of The Cap: | Ceramics Mounted |
| High Light: | H Shape 40W UVC Germicidal Tubes,UVC Germicidal Light 533mm G23,H Shape 40W UVC Germicidal Light |
||

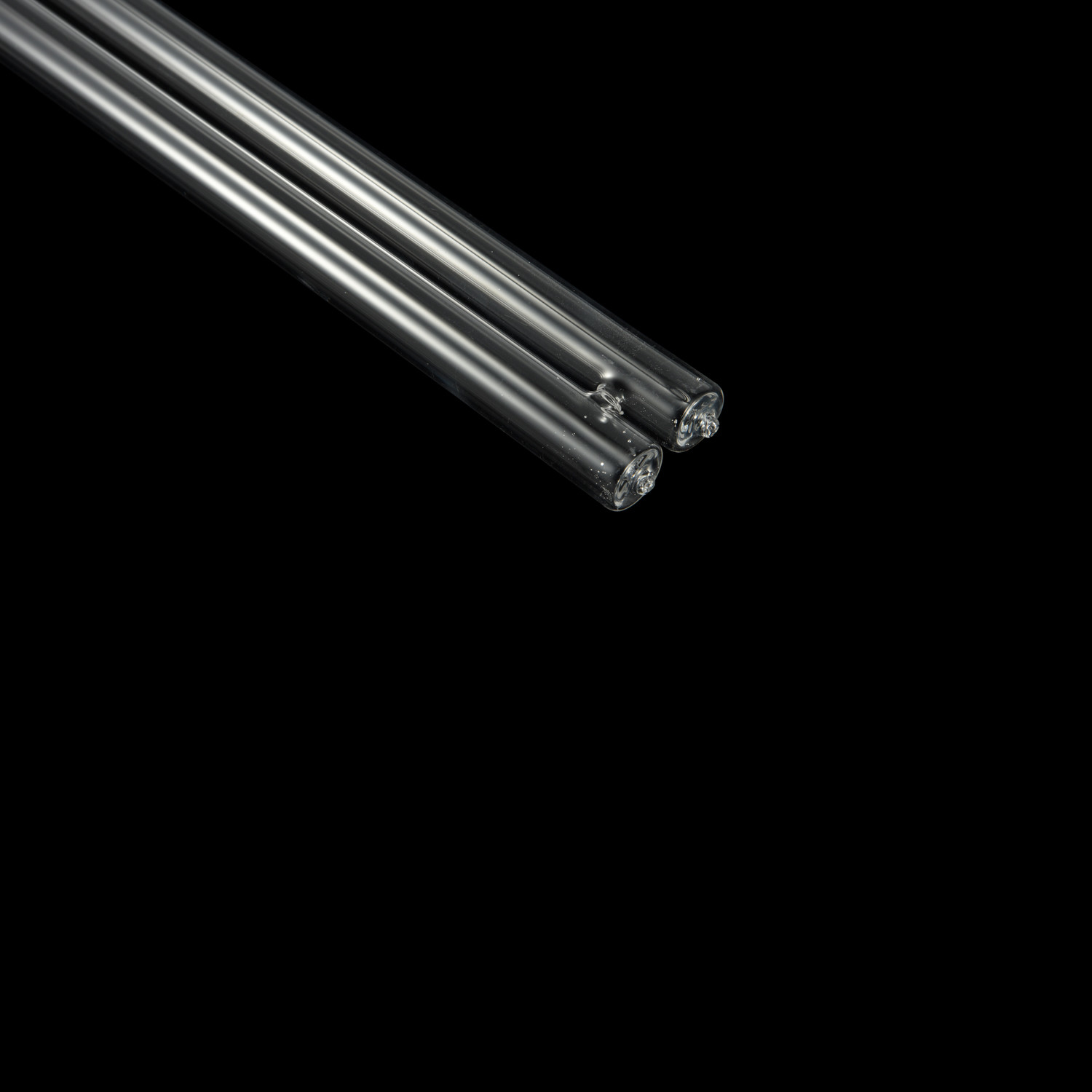

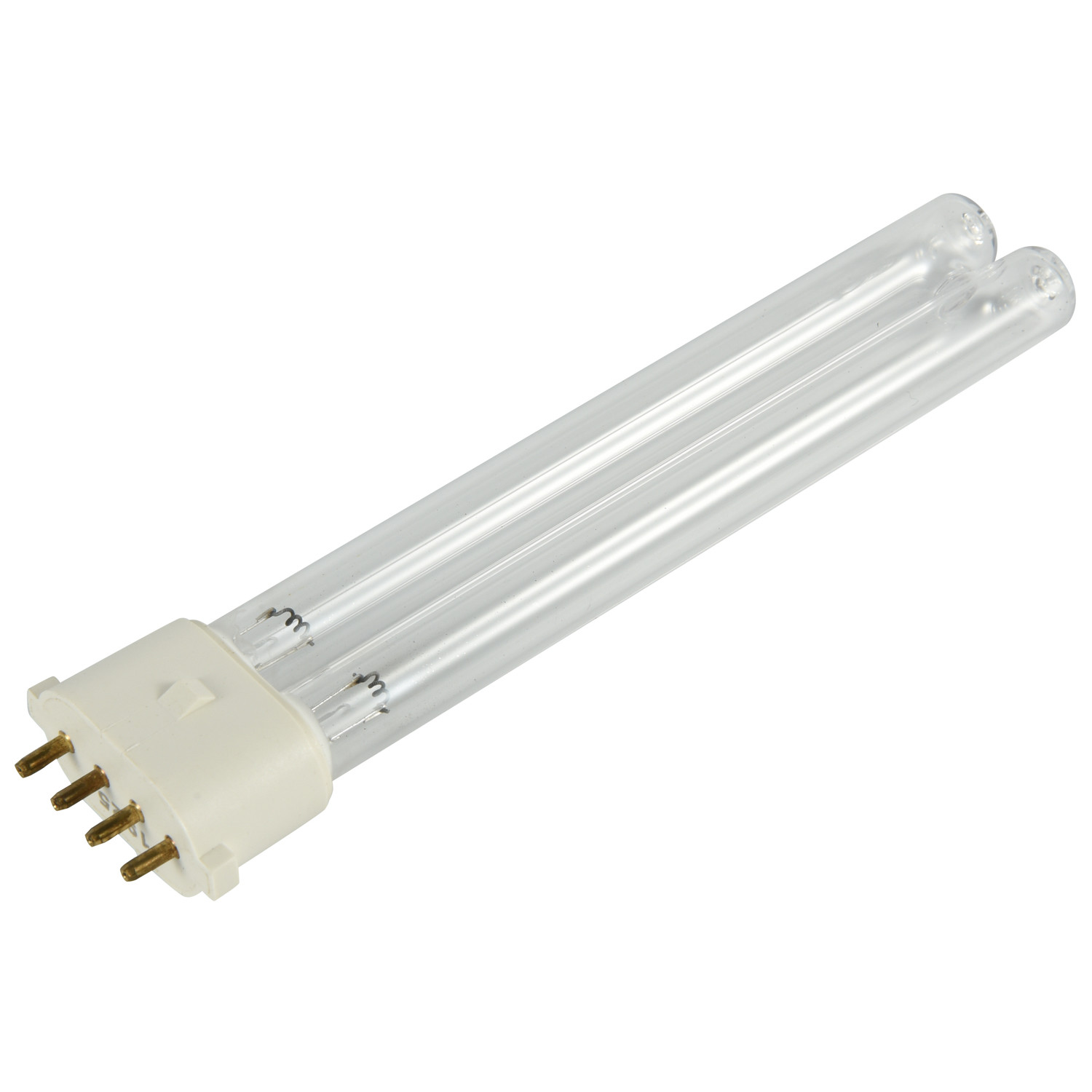

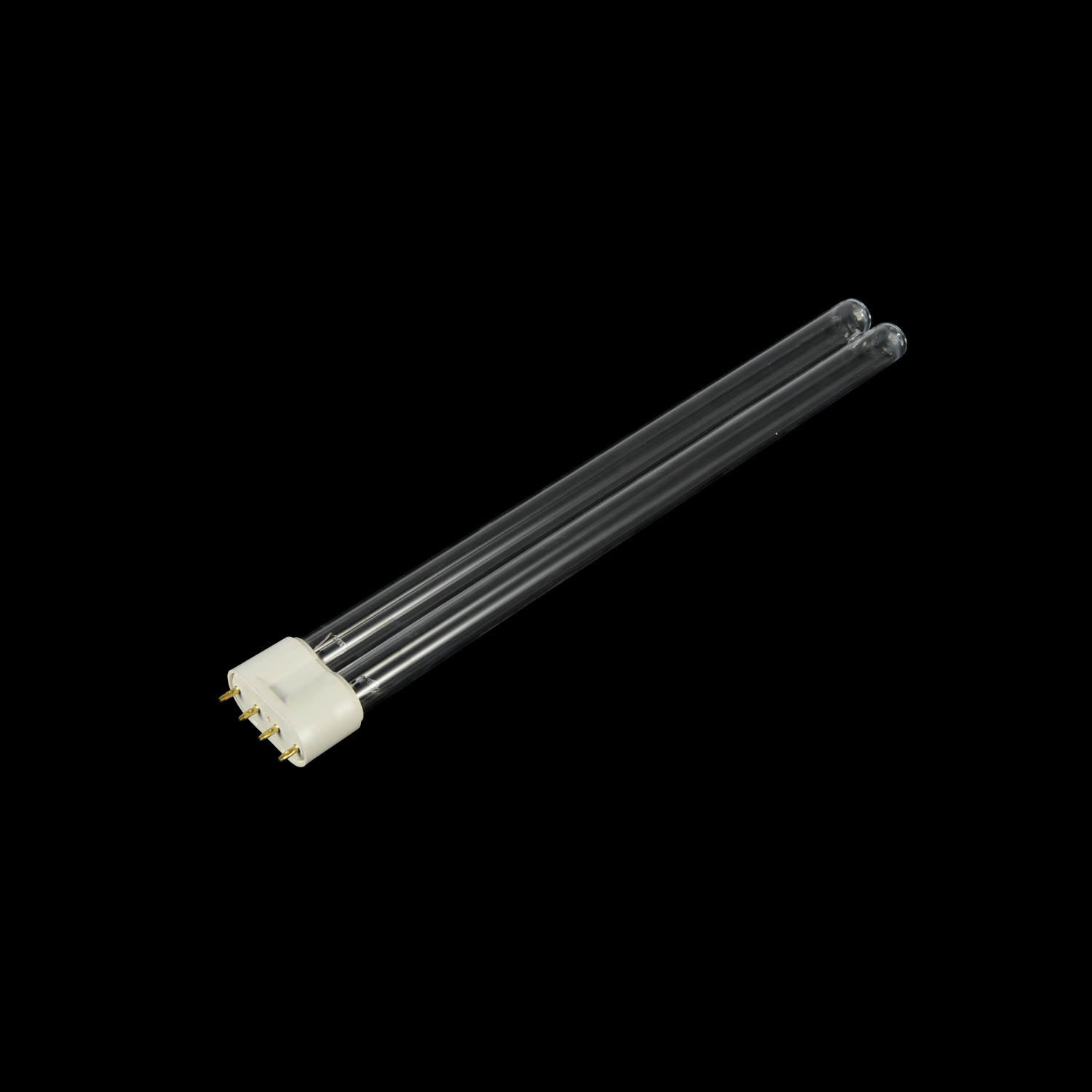

H Shape 40W UV Light Tubes 533mm Length G23 UVC Germicidal Light uv tube
40W 533mm 2G11 Light UVC Tube H Shape UV Germicidal Lamp
H type UV germicidal lamp is equipped with hot cathode starter,with the sepcification from 5W to 55W ,and a diameter of 12mm and 17mm
It could be applied in the electric appliance such as dynamic air sterilizer,sterilization cabinet as well as the equipments such as the sterilizer,disinfectant devices,deodorizing apparatus and purifier. Operation rooms, sickness rooms. Medical disinfection and air clean machines. UVC germicidal lamp are widely used in: ---hospital,medical centers,old homes,orphanages ---kindergartens,schools,high schools,universities ---restanrants and hotels ---food industry(meat,milk etc.)
| 1 | KITCHEN FUME PURIFICATION |
| 2 | DEODORIZATION AND PURIFICATION TREATMENT |
| 3 | REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS |
| Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm) | ||||||||
| ITEM NO./规格型号 | PRODUCT PICTURE/产品图片 | Dia/管径(mm) | MOQ(MOQ是否需要更改) | PORT | Price/价格($/pcs) | Ballast Price/ 镇流器价格($/set) | ||
| 单 端 H 管/Single ended H Pipe | 5W | ZW5D12Y(W)-H85 | ∅12 | 100 | NINGBO | |||
| 7W | ZW7D12Y(W)-H115 | ∅12 | 100 | NINGBO | ||||
| 9W | ZW9D12Y(W)-H145 | ∅12 | 100 | NINGBO | ||||
| 11W | ZW11D12Y(W)-H215 | ∅12 | 100 | NINGBO | ||||
| 13W | ZW13D12Y(W)-H164 | ∅12 | 100 | NINGBO | ||||
| 18W | ZW18D17Y(W)-H217 | ∅17 | 100 | NINGBO | ||||
| 24W | ZW24D17Y(W)-H317 | ∅17 | 100 | NINGBO | ||||
| 36W | ZW36D17Y(W)-H411(386) | 60w | ∅17 | 100 | NINGBO | |||
| 55W | ZW55D17Y(W)-H533 | 95w | ∅17 | 100 | NINGBO | |||
| Product Display |
|
Model | ZW40D17Y-H533 |
| Tube | 17mm | |
| Length | 533mm | |
| Power | 40W | |
| Current | 0.390A | |
| Voitage at | 92V | |
|
UV output at 254nm |
150μw/ cm2 | |
| 1.1W |
