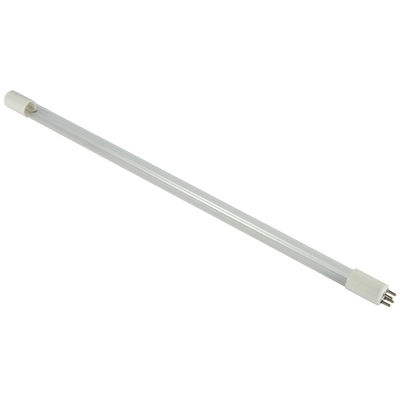

75W 1154mm UVC Germicidal Tubes Lamp Mercury Quartz Glass Ceramic Base

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: ZW75D15Y-Z1154
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Wattage: 75w Socket: G23
Current: 180 Length: 1154mm
Diameter: 15±0.3mm Model: ZW75D15Y-Z1154
Ballast: PH-800-150 Lamp Voltage: 95
Type: Ozone Materrial Of The Cap: Ceramics Mounted
High Light:

75W 1154mm UVC Germicidal Tubes

,

UV Germicidal Lamp Quartz Glass Ceramic Base

,

75W 1154mm UV Germicidal Lamp


Product Description

75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base

SINGLE ENDED FOUR PINS SUPER POWER
75W UVC LAMPS
TUV T8 lamps are double-ended UVC (germicidal) lamps used in professional water and air disinfection units. TUV T8 lamps offer
almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Moreover,
they have a long and reliable lifetime, which allows maintenance to be planned for in advance.



75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 0
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 1
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 275W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 3


75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 475W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 575W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 675W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 7

Product Presentation
Application:
1.Used in various household appliances such as disinfection cabinets,microwave ovens,air conditioners,air purifiers,etc. 2.Disinfection and sterilization of air and surface of objects in hospitals,schools,hotels,restaurants,homes and offices.
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 8
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 9

75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 10

Product Name
UVC Germicidal lamp

Material
Quartz tube

Power
75w

Lamp current
0.8A

Measuring Distance
1.0m

Model
ZW75D15Y-Z1154

Style
Straight



UVC output measurd after 100 hours of operation under
labconditions,These valus are subject to wide variations
underapplication/field conditions. 紫外输出指灯管在实验室条件下运行100小时所测得的数值.这些数值
可能因应用环境不同而有所变化.
Rated Lifetime
额定寿命
11000 hours
Output Depreciation@Rated
Lifetime
寿命期内光通量维持率
80%
The radiation coming from this lamp is harmful for skin and
eyes.Plrase use the lamps only in the designated plants or
pay attention for radiation protrction.Health and safety
regulations must be observed!
该灯管辐射出来的紫外线对眼睛及皮肤有害.请只在指定的
场所内使用该灯管或者注意进行辐射防护.必须遵守健康安
全法则.
Operation Mode
工作方式
Continuous Operation
持续运行
Rated life is for reference purposes only and is basedon a group of
lamps operating under lab conditions.Actual life depends on the
operating conditions of the lamp.

75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 11
ITEM NO./规格型号 PRODUCT PICTURE/产品图片 Dia/管径(mm)
4W ZW4D15Y(W)-Z135 75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 12 ∅15
5W ZW5D15Y(W)-Z150 75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 13 ∅15
10W ZW10D15Y(W)-Z212 75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 14 ∅15
14W ZW14D15Y(W)-Z287   ∅15
15W ZW15D15Y(W)-Z303   ∅15
17W ZW17D15Y(W)-Z356   ∅15
23W ZW23D15Y(W)-Z463   ∅15
28W ZW28D15Y(W)-Z550   ∅15
37W ZW37D15Y(W)-Z793   ∅15
40W ZW40D15Y(W)-Z851   ∅15
55W ZW55D15Y(W)-Z1149   ∅15
65W ZW65D15Y(W)-Z1554   ∅15
75W ZW75D15Y(W)-Z1554   ∅15

Lamp adapters

There are four : Plastic , Ceramic, Aluminium (blue and silver) lamp adapters for your choice
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 15
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 16
Detailed Images

The eight core strengths

1.Core filament electronic power processing technology. 2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology. 4.Solid mercury----Homemade special mercury fixation to improve light efficiency. 5.Unique patented rapid leak detection technology 6.Unique wick anti-vibration patented technology . 7.The most advanced automated processing equiment in China. 8.Cost advantage and perfect pre-sales and after-sales service.
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 17
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 18
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 19
1.Top quality quartz tube 2.>93% ultraviolet light transmittance 3. High temperature resistance 4. Corrosion resistance 4. Patented anti-fouling technology for the outer coating film of the lamp or quartz sleeve to ensure that the surface of the lamp
is not affected by external environmental pollution.
1.High quality adapter
2.Completely connection
3.Stable and reliable
4.High effeciency
1.Unique inner coating and outer coating technology 2. The internal coating technology ensures that the maximum illuminance attenuation of the ultraviolet lamp during the life of the tube does not exceed 15% Uniform and dense demoulding 2. After 600 degrees high temperature baking, it still maintains continuous density 3. Three layers of protection

75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 20
The disinfection principle of ultraviolet light?
There are many ways to demonstrate, sample or measure many things that happen. One is to use a contact plate containing malt agar. Before installing the UV-C, please lightly touch the surface with the board. Then it was incubated for approximately 96 hours. After installing UV-C, this step will be performed again at the same location. People often see a
reduction in growth of organisms by more than 98%? Different bacterial growth media can be used to similarly sample the water pan
and its water. Some other methods are:
o A significant reduction in mold can be seen in a short period of time.
o It has been shown that in less than 30 days, the coil pressure drop has dropped by more than 10% (depending on surface
cleanliness and water activity). Of course, system airflow and capacity usually increase accordingly.
o The drain pan and the water in the drain pan have become cleaner.
o All field wire surfaces, such as insulation materials, etc., will start to look cleaner.
o Most of the related odors produced by irradiated pollutants disappeared.
o Many indoor air quality complaints have been recorded as reductions.
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 21
How does UV light affect bacteria?
Microorganisms are simple organic structures that can easily absorb UV-C wavelengths, causing
photodissociation (destruction). Microbial DNA (deoxyribonucleic acid) is first adversely affected due to its weaker molecular
bonds. Within a hundredth of a second, it suffered irreparable damage. The subsequent loss of genetic instructions can cause the
cell to die and/or fail to replicate, making it harmless. Continuous exposure will cause uninterrupted degradation, such as the
sun, which will only be significantly faster.
Does UV-C lamp produce ozone?
No, but UVC does provide exceptional air conditioning, just like the sun is outdoors. The UVC fixture
is an air conditioning component in addition to other system components. These components include filters, coils, heating cores,
fans, dampers, humidifiers, etc. All of these components are designed to provide specific functions for treating the air in the
occupied space.
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 22
Certificate
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 23
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 24
75W 1154mm UV Germicidal Lamp Mercury Quartz Glass Ceramic Base 25




Why choose us





Youwei lamp, 30 years manufacture for UVC lamps!
We will be your most professional partner !

1. Lamps are approved by CE and RoHS.
2. 16 years experience in production and application of UV lamps.
3. Implement strict quality system according to ISO9001.
4. All lamps are tested one by one before delivery out from our factory.
5. You will get 1 year warranty for our UV lamps,free replacements or repairment service if they fail to work during warranty period.

6. Offer free samples for your evaluation.
7. Punctual delivery time, samples order delivery within 5 working days, bulk order delivery within 25 days.
8. Dependable after sales service
9. ODM and OEM service.
10. Low MOQ limitation
11. 7*24service, any of your questions will be replied within 24 hours
