Name: 4 PIN Single Ended 9W UV Light H Shape Water Disinfection UV Germicidal Lamp
Brand: UV, Yoway
SKU: ZW9D12W-H145
Price: 3 USD
Availability: InStock
Rating: 4.7 (131 reviews)

Detail Information

Name:	H Shape Uvc Lamp	Wattage:	9w
Material:	99% High Purity Quartz	Tube Life Span:	13000 Hours
Warranty:	1 YEAR	Item:	ZW9D12W-H145
DIAMETER:	12	LENGTH:	145mm
High Light:	4 PIN Single Ended 9W UV Light , Water Disinfection UV Germicidal Lamp , 9W UV Light H shape

Product Description

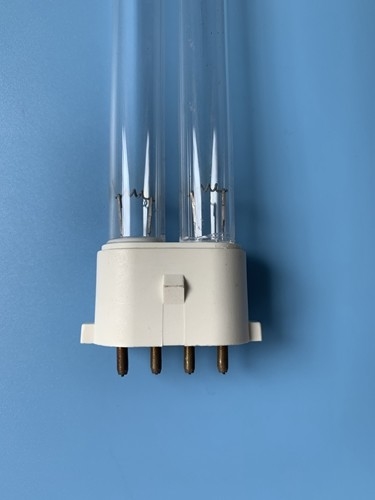

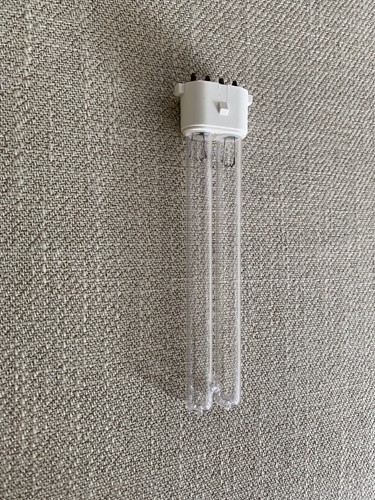

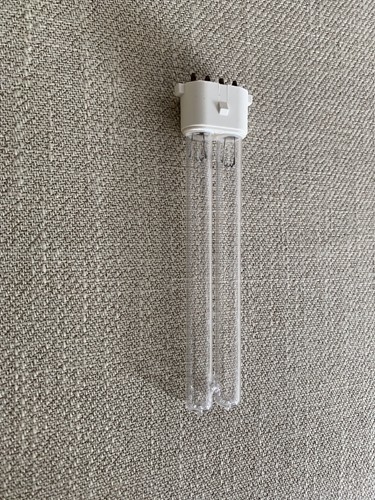

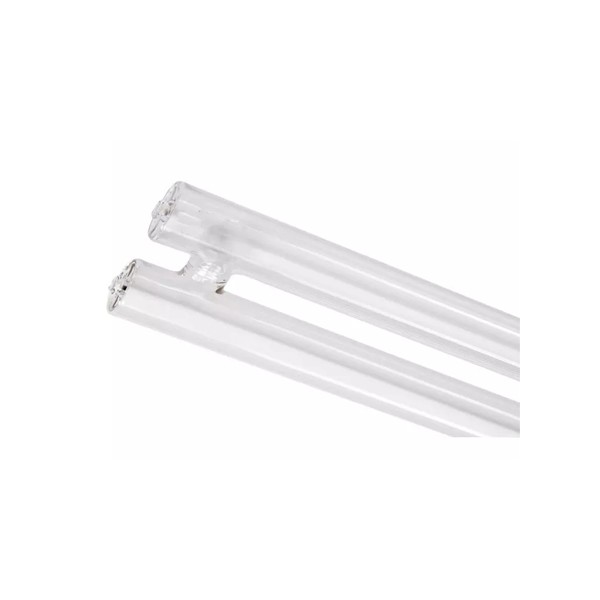

4 PIN Single Ended 9W UV Light H shape Water Disinfection UV Germicidal Lamp

9W Light Ultraviolet UV For Water Reduce 4 PIN Single End UV Germicidal Lamp For Water Disinfection Equipment

WASTE GAS TREATMENT UV LAMP

ZW9D12W-H145

1	KITCHEN FUME PURIFICATION
2	DEODORIZATION AND PURIFICATION TREATMENT
3	REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)
	ITEM NO		PRODUCT PICTURE	Dia	MOQ	PORT	Price	Ballast Price
	ITEM NO		PRODUCT PICTURE	Dia	MOQ	PORT	Price	Ballast Price
Single ended H Pipe	5W	ZW5D12Y(W)-H85		∅12	100	NINGBO
	7W	ZW7D12Y(W)-H115		∅12	100	NINGBO
	9W	ZW9D12Y(W)-H145		∅12	100	NINGBO
	11W	ZW11D12Y(W)-H215		∅12	100	NINGBO
	13W	ZW13D12Y(W)-H164		∅12	100	NINGBO
	18W	ZW18D17Y(W)-H217		∅17	100	NINGBO
	24W	ZW24D17Y(W)-H317		∅17	100	NINGBO
	36W	ZW36D17Y(W)-H411(386)	60w	∅17	100	NINGBO
	55W	ZW55D17Y(W)-H533	95w	∅17	100	NINGBO

4 PIN Single Ended 9W UV Light H shape Water Disinfection UV Germicidal Lamp 0

4 PIN Single Ended 9W UV Light H shape Water Disinfection UV Germicidal Lamp 3

Light Source	Quartz Tube
wavelength(nm)	253.7
Rated Power	40-300W
Diameter	17mm
Base face length	533
Head material	ceramics
Single head or double head	Sigle-ended

Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.

The Eight Core Technologies

1.Core filament electronic power processing technology. 2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology. 4.Solid mercury----Homemade special mercury fixation to improve light efficiency. 5.Unique patented rapid leak detection technology 6.Unique wick anti-vibration patented technology . 7.The most advanced automated processing equiment in China. 8.Cost advantage and perfect pre-sales and after-sales service.

As the provider of air purifier, UV sterilizer, and UV germicidal lamp, we are committed to provide our customers with options for UV disinfection solution with the diversified products that can meet the needs of different customers. The UV sterilizer includes UV air sterilizer, UV sterilizer box, UV sterilizer wand, UV sterilizer for Aquarium & swimming pool, etc. The UV germicidal lamp includes double-ended straight tubes, single-ended straight tubes, single-ended H tubes, high-power water treatment lamps, code cathode lamps, electronic ballasts, sewage treatment equipment, etc.

Our pursuit for the customer are always on-time delivery, qualified & profitable products, and the best service.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	UV, Yoway
Certification:	CE,ROSH
Model Number:	ZW9D12W-H145

Minimum Order Quantity:	10 pcs
Price:	$3-$25/SET
Packaging Details:	paper box packing
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000pcs per month
