Detail Information

Tube:	H Tube	Wattage:	18w
Lamp:	Single-ended	BASE:	2G11
Lamp Core:	9711	ITEM:	ZW18D17W-H217
DIAMETER:	17	LENGTH:	217mm
Mercury:	Liquid Mercury	TYPE:	No OZONE/FREE
High Light:	H18W H Shape UVC Light Tubes , 2G11 Base Air Disinfection Lamp , Ozone Free Air Disinfection Lamp

Product Description

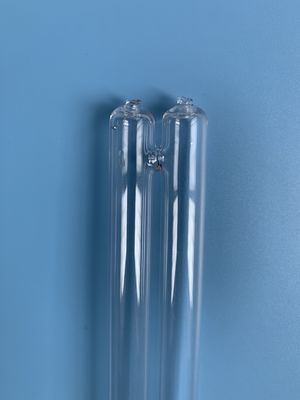

H18W H Shape UVC Light Tubes 2G11 Base Ozone Free Air Disinfection Lamp

WASTE GAS TREATMENT UV LAMP

H18W H Shape Lamp Uvc 254nm Ultraviolet Light 2G11 Base Lamps Ozone Free UV Lamp Air Disinfection Lamp For Air

ZW18D17W-H217

No.	Item	Code	Rated value	Unit
1	Lamp Power	P_L	17.7	W
2	Lamp Voltage	U_L	47.5	V
3	*Lamp current	I_L	386*	mA
4	Strengh of 254nm @30mm distance		≥55	μw/cm²
5	Steady time of lighting	T	5	min
6	Average lifetime	H	＞8000	h

Product Description

H Shaped UVC Lamp Specification Details

Main body material: High quality Quartz glass

Base material: Ceramic, aluminum, plastic

Wattage: can make according to customized request.
Wavelength: 254nm (Ozone free), Or 254nm + 185nm (With Ozone )

Appearance Type: H shaped.
Lamp base type: G23, GX23, 2G7, 2G11, G32q

Average Lifetime: ≥8000hrs

1	KITCHEN FUME PURIFICATION
2	DEODORIZATION AND PURIFICATION TREATMENT
3	REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)
	ITEM NO.		PRODUCT PICTURE	Dia(mm)	MOQ	PORT	Price($/pcs)	Ballast Price($/set)
	ITEM NO.		PRODUCT PICTURE	Dia(mm)	MOQ	PORT	Price($/pcs)	Ballast Price($/set)
Single ended H Pipe	5W	ZW5D12Y(W)-H85		∅12	100	NINGBO
	7W	ZW7D12Y(W)-H115		∅12	100	NINGBO
	9W	ZW9D12Y(W)-H145		∅12	100	NINGBO
	11W	ZW11D12Y(W)-H215		∅12	100	NINGBO
	13W	ZW13D12Y(W)-H164		∅12	100	NINGBO
	18W	ZW18D17Y(W)-H217		∅17	100	NINGBO
	24W	ZW24D17Y(W)-H317		∅17	100	NINGBO
	36W	ZW36D17Y(W)-H411(386)	60w	∅17	100	NINGBO
	55W	ZW55D17Y(W)-H533	95w	∅17	100	NINGBO

1 Ballast for testing: YW-HCS-102A

2 Instrument for testing: UI2000

3 Testing condition: Temperature:25±1℃ Humidity:30%~50%

4 UV-ray luminometer is tested by UVB-254 probe type of Beijing Normal University,The test values of different illuminance meters are different, and the data are from Youwei Light & Electricity.

No.	Specification	Material
1	Glass tube	Ozone free quartz glass
2	Lamp core	9711
3	Exterior lead wire	Molybdenum
4	Gas sealed	Inret gas
5	Base	2G11
6	Mercury	Liquid Mercury

The Eight Core Technologies

1.Core filament electronic power processing technology. 2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology. 4.Solid mercury----Homemade special mercury fixation to improve light efficiency. 5.Unique patented rapid leak detection technology 6.Unique wick anti-vibration patented technology . 7.The most advanced automated processing equiment in China. 8.Cost advantage and perfect pre-sales and after-sales service.

APPLICATION

Water supply and sewerage, drinking water disinfection, transportation factories, hotels, schools, kindergartens, restaurants, hosputals, canteens, families, inspection rooms, beauty clubs, etc.

Applications

UVC lamp have widely application


1. Air purifying for rooms and offices, or other private or public spaces.


2. Sterilizing and Algae removal for quarium,farming ponds, landscape water area etc .

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	UV, Yoway
Certification:	CE,ROSH
Model Number:	ZW18D17W-H217 2G11

Minimum Order Quantity:	10 pcs
Price:	$3-$25/SET
Packaging Details:	paper box packing
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000pcs per month

H18W H Shape UVC Light Tubes 2G11 Base Ozone Free Air Disinfection Lamp
