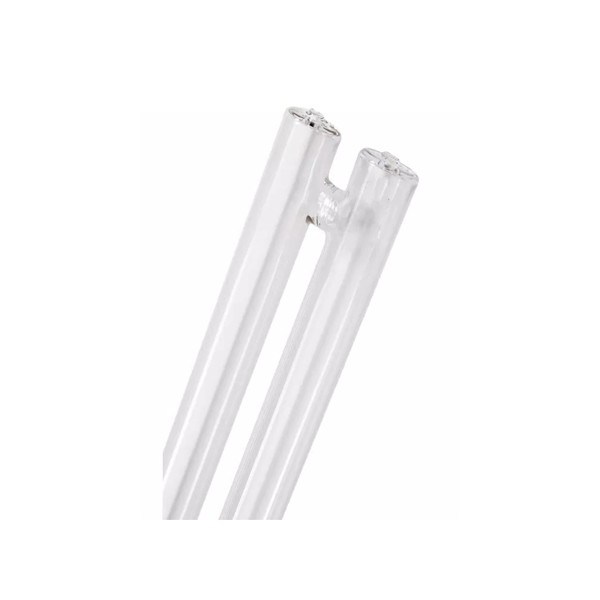

Name: 5W UV Quartz Tube H Shape UV Germicidal Lamp 254 Nm
Brand: UV, Yoway
SKU: ZW5D12Y(W)-H85
Price: 3 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Detail Information

Shape:	H Shape	Wattage:	5w
Lamp Core:	0476	Life Span:	8000 Hours
Exterior Lead Wire:	Molybdenum	ITEM:	ZW5D12Y(W)-H85
DIAMETER:	12mm	LENGTH:	85mm
High Light:	5W UVC Light Tubes H Shape , 5W uv germicidal lamp 254 nm , H Shape UV Germicidal Lamp 254 Nm

Product Description

5W UVC Light Tubes H Shape 254nm Germicidal Lamp UV Quartz Tube uvc lamp

WASTE GAS TREATMENT UV LAMP

ZW5D12Y(W)-H85

No.	Item	Code	Rated value	Unit
1	Lamp Power	P_L	5.8	W
2	Lamp Voltage	U_L	38.2	V
3	*Lamp current	I_L	155*	mA
4	Strengh of 254nm @30mm distance		≥19	μw/cm²
5	Steady time of lighting	T_稳	5	min
6	Average lifetime	H	＞8000	h

1	KITCHEN FUME PURIFICATION
2	DEODORIZATION AND PURIFICATION TREATMENT
3	REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)
	ITEM NO.		PRODUCT PICTURE	Dia(mm)	MOQ	PORT	Price($/pcs)	Ballast Price($/set)
	ITEM NO.		PRODUCT PICTURE	Dia(mm)	MOQ	PORT	Price($/pcs)	Ballast Price($/set)
Single ended H Pipe	5W	ZW5D12Y(W)-H85		∅12	100	NINGBO
	7W	ZW7D12Y(W)-H115		∅12	100	NINGBO
	9W	ZW9D12Y(W)-H145		∅12	100	NINGBO
	11W	ZW11D12Y(W)-H215		∅12	100	NINGBO
	13W	ZW13D12Y(W)-H164		∅12	100	NINGBO
	18W	ZW18D17Y(W)-H217		∅17	100	NINGBO
	24W	ZW24D17Y(W)-H317		∅17	100	NINGBO
	36W	ZW36D17Y(W)-H411(386)	60w	∅17	100	NINGBO
	55W	ZW55D17Y(W)-H533	95w	∅17	100	NINGBO

5W UVC Light Tubes H Shape 254nm Germicidal Lamp UV Quartz Tube uvc lamp 5

Light Source	Quartz Tube
wavelength(nm)	253.7
ballast	YW-HCS-102A
Diameter	12mm
Base face length	85mm
Head material	ceramics
Single head or double head	Sigle-ended

The Eight Core Technologies

1.Core filament electronic power processing technology. 2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology. 4.Solid mercury----Homemade special mercury fixation to improve light efficiency. 5.Unique patented rapid leak detection technology 6.Unique wick anti-vibration patented technology . 7.The most advanced automated processing equiment in China. 8.Cost advantage and perfect pre-sales and after-sales service.

APPLICATION

Water supply and sewerage, drinking water disinfection, transportation factories, hotels, schools, kindergartens, restaurants, hosputals, canteens, families, inspection rooms, beauty clubs, etc.

Why Choose Us

Lamps are approved by CE and RoHS.

More than 15 years experience in production and application of UV lamps.

Implement strict quality system according to ISO9001.

All lamps are tested one by one before delivery out from our factory.

You will get 1 year warranty for our UV lamps,free replacements or repairment service if they fail to work during warranty

period.

Offer free samples for your evaluation.

Low MOQ

Punctual delivery time, samples order delivery within 5 working days, bulk order delivery within 25 days.

Dependable after sales service

ODM and OEM service.

7*24service, any of your questions will be replied within 24 hours

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	UV, Yoway
Certification:	CE,ROSH
Model Number:	ZW5D12Y(W)-H85

Minimum Order Quantity:	10 pcs
Price:	$3-$25/SET
Packaging Details:	paper box packing
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000pcs per month
