Name: 2G11 H Type UVC Light Tubes Ultraviolet Disinfection 254nm clean UV Germicidal Lamp
Brand: Youwei,Yoway
SKU: ZW24D17W-H317
Price: 3 USD
Availability: InStock
Rating: 4.5 (130 reviews)

Detail Information

TUBE:	H Shape	Wattage:	24w
Lamp.:	253.7 Uv Rays	Average Lifetime:	＞8000
Exterior Lead Wire:	Molybdenum	ITEM::	ZW24D17W-H317
MOQ:	100PCS	Gas Sealed:	Inret Gas
TYPE:	No OZONE	Cap:	2G11

Product Description

2G11 UVC Light Tubes

254nm UVC Light Tubes

H Type 254nm UV Lamp

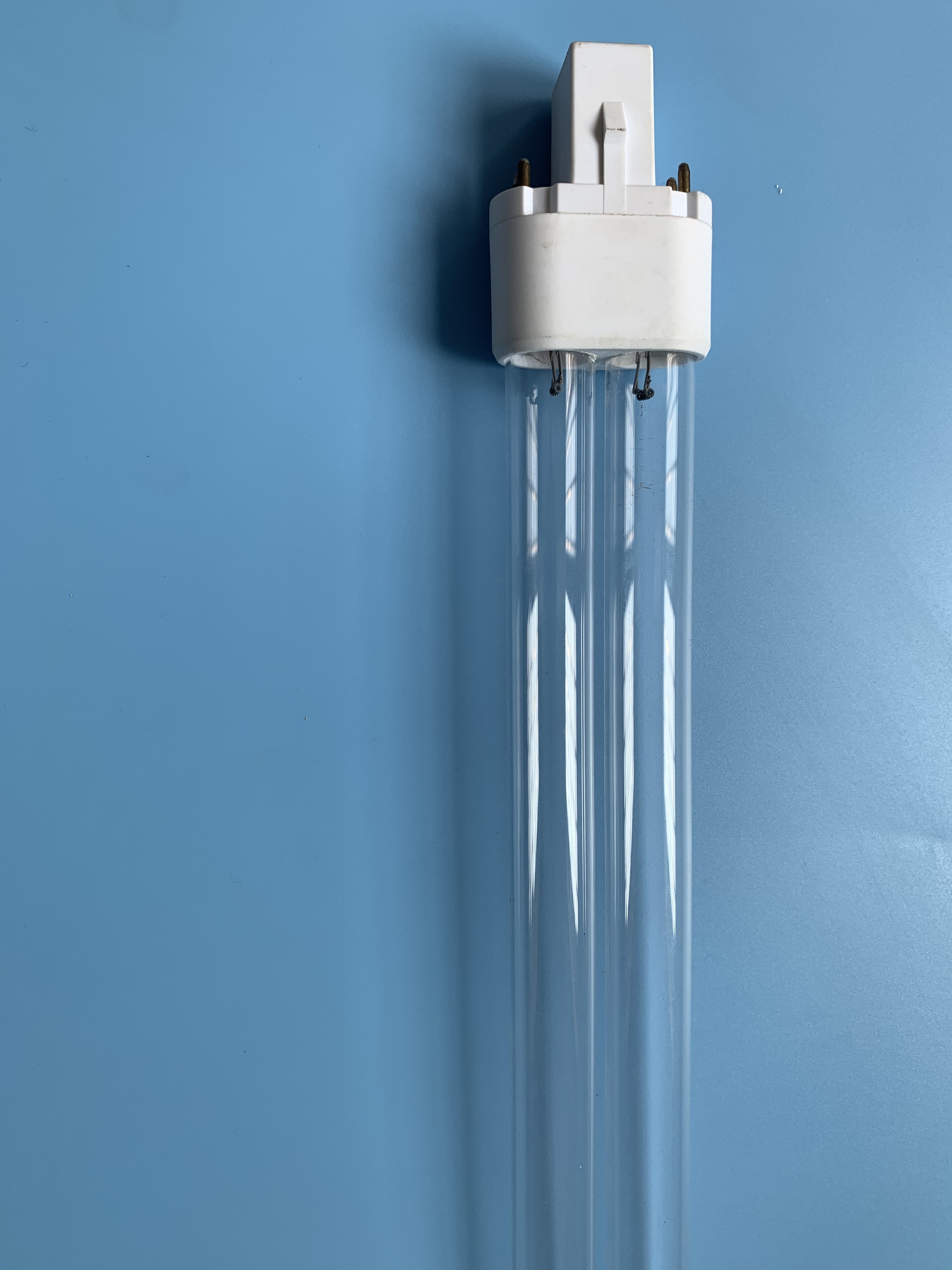

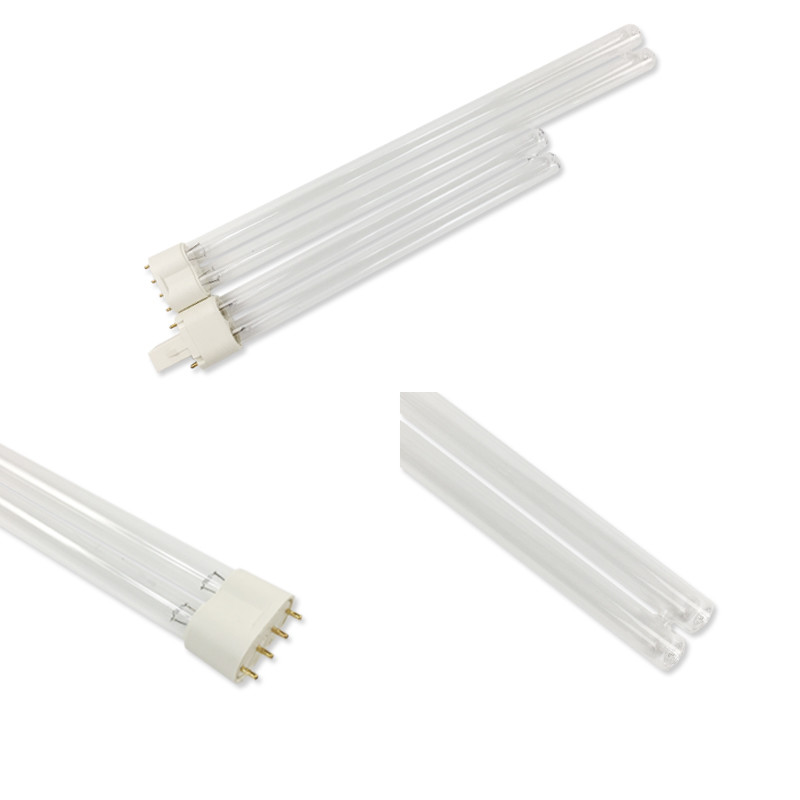

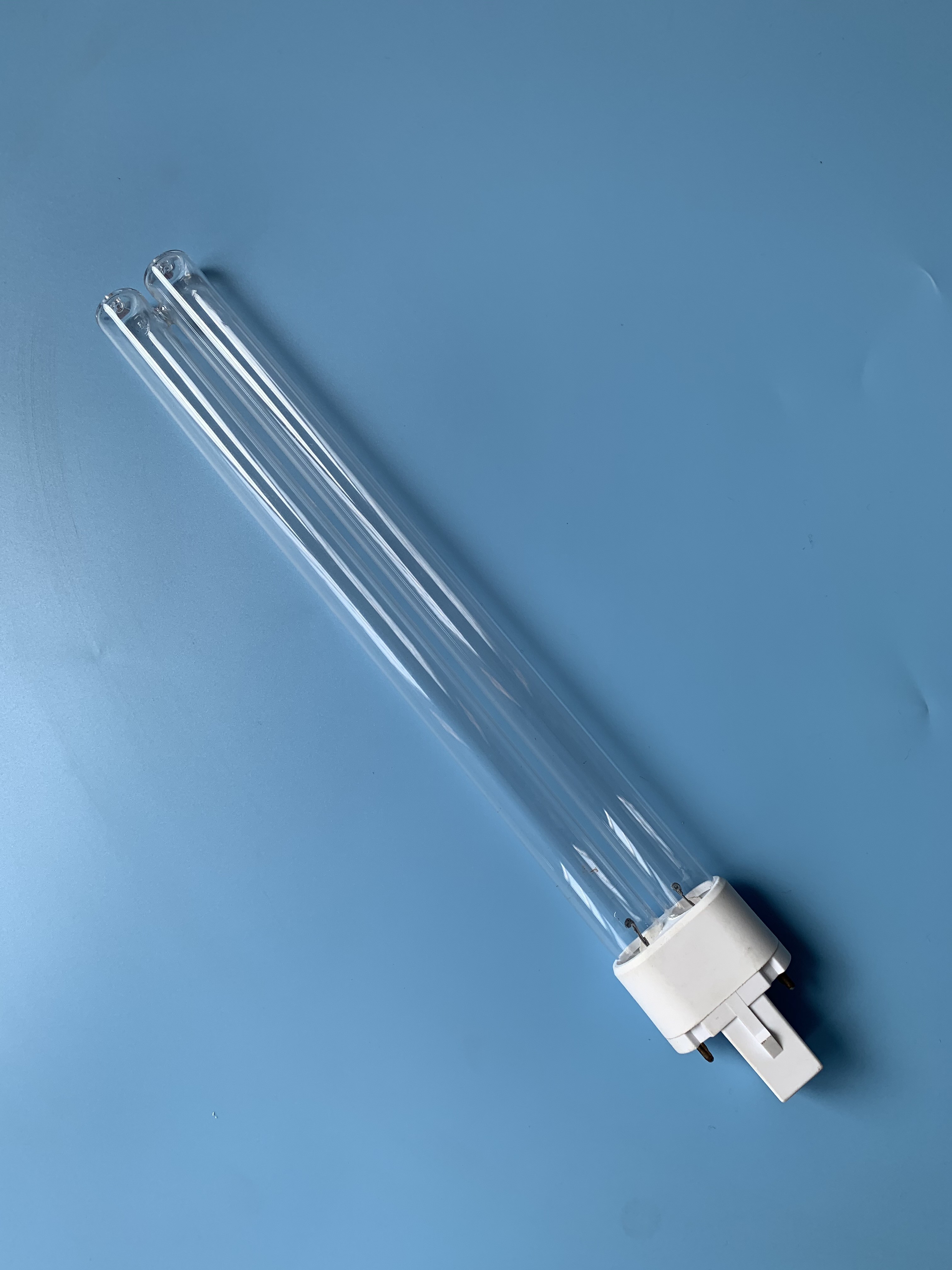

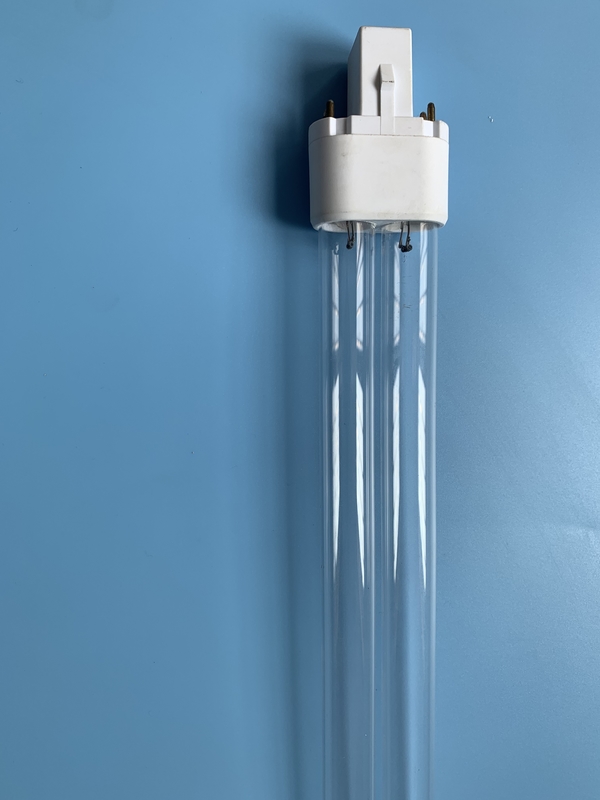

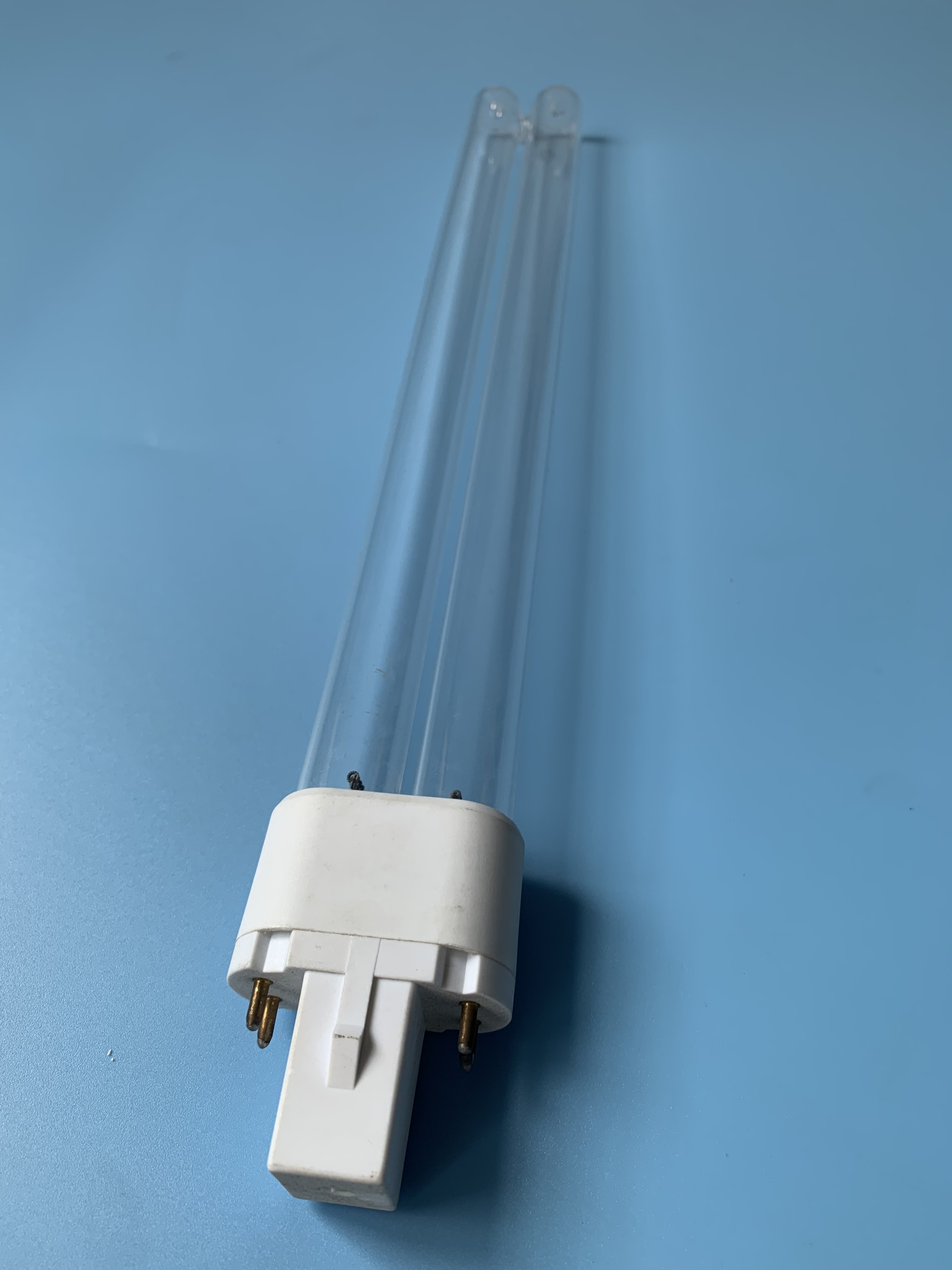

H Type UVC Light Ultraviolet Disinfection Lamps H Shape 254nm UV Germicidal Lamp

Product Description

H-shaped Germicidal UV Light lamp Ozone free uvc tube

ZW24D17W-H317

No.	Specification	Material
1	Glass tube	Ozone free quartz glass
2	Lamp core	9711
3	Exterior lead wire	Molybdenum
4	Gas sealed	Inret gas
5	Base	2G11
6	Mercury	Liquid

1	KITCHEN FUME PURIFICATION
2	DEODORIZATION AND PURIFICATION TREATMENT
3	REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)
	ITEM NO.		PRODUCT PICTURE	Dia(mm)	MOQ	PORT	Price($/pcs)	Ballast Price($/set)
	ITEM NO.		PRODUCT PICTURE	Dia(mm)	MOQ	PORT	Price($/pcs)	Ballast Price($/set)
Single ended H Pipe	5W	ZW5D12Y(W)-H85		∅12	100	NINGBO
	7W	ZW7D12Y(W)-H115		∅12	100	NINGBO
	9W	ZW9D12Y(W)-H145		∅12	100	NINGBO
	11W	ZW11D12Y(W)-H215		∅12	100	NINGBO
	13W	ZW13D12Y(W)-H164		∅12	100	NINGBO
	18W	ZW18D17Y(W)-H217		∅17	100	NINGBO
	24W	ZW24D17Y(W)-H317		∅17	100	NINGBO
	36W	ZW36D17Y(W)-H411(386)	60w	∅17	100	NINGBO
	55W	ZW55D17Y(W)-H533	95w	∅17	100	NINGBO

model: ZW24D17W-H317

product code:

Type of ballast:

Appearance and fixture

2-1 External quality

2-1-1 External quality is checked by sights or by a vernier caliper with precision of ±0.02mm.

2-1-2 Glass tube should be transparent, clean, straight, no any faults to affect uv rays through.

2-1-3 The lamp cap shall be fixed on both ends of the lamp tube, and there shall be no defects affecting the installation.

Light Source	Quartz Tube
wavelength(nm)	253.7
ballast	YW-HCS-102A
Diameter	12mm
Base face length	317
Head material	ceramics
Single head or double head	h shape

Ultraviolet sterilization principle :
UV light is divided into four distinct spectral areas-Vacuum UV (100 to 200 nanometers), UV-C (200 to 280 nanometers), UV-B (280 to 315 nanometers), and UV-A (315 to 400 nanometers). The UV-C spectrum (200 to 280 nanometers) is the most lethal range of wavelengths for microorganisms. This range, with 254 nanometers being the peak germicidal wavelength, is known as the Germicidal Spectrum.

Packaging and Delivery Time

1.Packed in carton.

2.Delivery time :Around 5-7 working days after we confirm the payment.

3.Package is made accoring to the customer's requirement.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	Youwei,Yoway
Certification:	CE,ROSH
Model Number:	ZW24D17W-H317

Minimum Order Quantity:	10 pcs
Price:	$3-$25/SET
Packaging Details:	paper box packing
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000pcs per month
