55W H Type UVC Light Tubes Ultraviolet 254nm 533mm UV Disinfection Tube

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Youwei,Yoway
Certification: CE,ROSH
Model Number: ZW55D15Y-H533
Minimum Order Quantity: 200pcs
Price: $3-$25/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Type: H Shape Lifetime:: >8000
Wattage: 55W BALLAS: YW-HCS-102A
Lamp Voltage: 122 Ozone: OZONE/FREE
Base: Single-ended Amp Current: 326
Lamp: ZW55D17Y(W)-H533 DIAMETER: 17
LENGTH: 533mm

Product Description

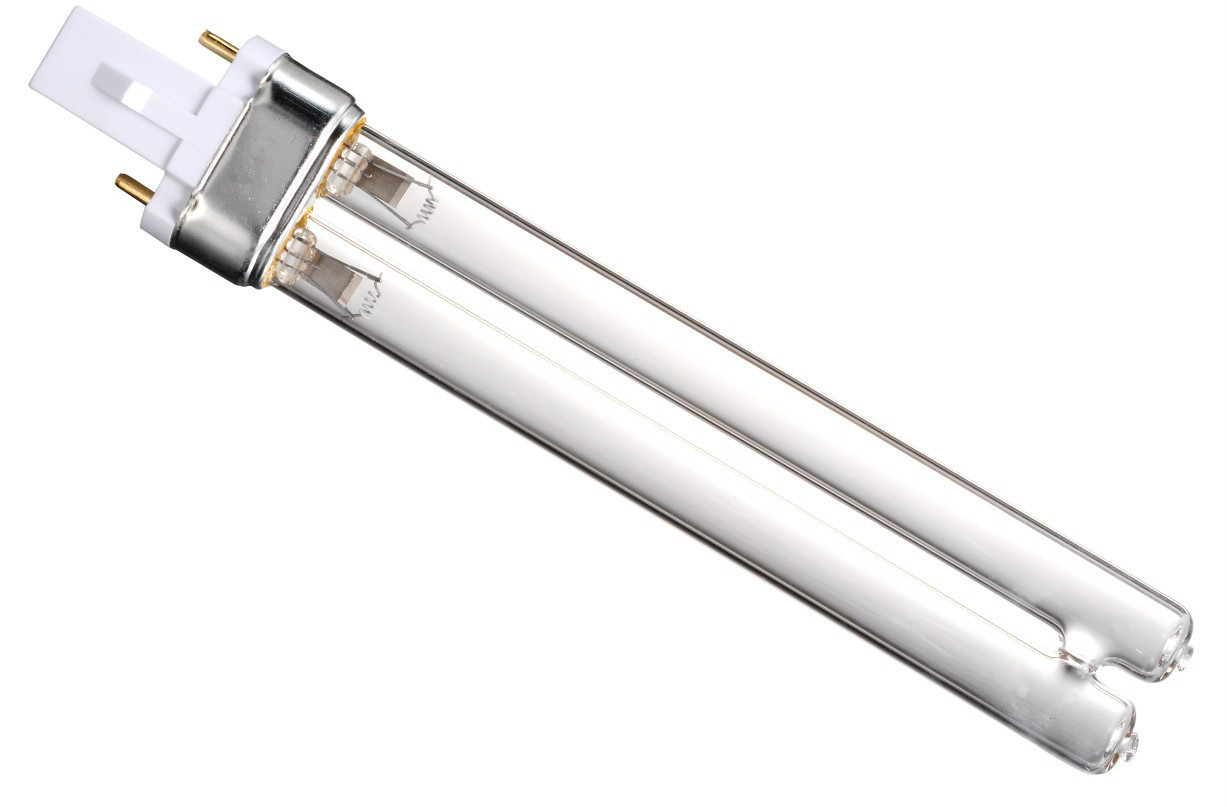

H shape UV germicidal lamp


Product Description



H type UV germicidal lamp is equipped with hot cathode starter,with the sepcification from 5W to 55W ,and a diameter of 12mm and 17mm.
PRODUCT DETAILS

1.Made of high quality quartz.
2.Average lamp life is 8,000 hours.
3.lamp cap are G23 and 2G11 are for choice.
4.Ozone-free lamps(254nm) and ozone-generating lamps (185nm) are for choice.
5.The 254nm (UV output) was tested in the laboratory.It maybe different when the environment was changed.

ZW40D17Y(W)-H533

No. Item Code Rated value Unit Tolerance
1 Lamp Power PL 39.8 W ±15%
2 Lamp Voltage UL 122 V
3 *Lamp current IL 326* mA
4

Strengh of 254nm

@30mm distance

  ≥152 μw/cm2
5 Steady time of lighting T 10 min
6 Average lifetime H >8000 h





Product Description



H Shaped UVC Lamp Specification Details

Main body material: High quality Quartz glass
Base material: Ceramic, aluminum, plastic
Wattage: can make according to customized request.

Wavelength: 254nm (Ozone free), Or 254nm + 185nm (With Ozone )
Appearance Type: H shaped.

Lamp base type: G23, GX23, 2G7, 2G11, G32q
Average Lifetime: ≥8000hrs

1 KITCHEN FUME PURIFICATION
2 DEODORIZATION AND PURIFICATION TREATMENT
3 REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS



Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)
  ITEM NO. PRODUCT PICTURE Dia(mm) MOQ PORT Price($/pcs) Ballast Price($/set)
Single ended H Pipe 5W ZW5D12Y(W)-H85   ∅12 100 NINGBO
7W ZW7D12Y(W)-H115   ∅12 100 NINGBO
9W ZW9D12Y(W)-H145   ∅12 100 NINGBO
11W ZW11D12Y(W)-H215   ∅12 100 NINGBO
13W ZW13D12Y(W)-H164   ∅12 100 NINGBO
18W ZW18D17Y(W)-H217   ∅17 100 NINGBO
24W ZW24D17Y(W)-H317   ∅17 100 NINGBO
36W ZW36D17Y(W)-H411(386) 60w ∅17 100 NINGBO
55W ZW55D17Y(W)-H533 95w ∅17 100 NINGBO

1 Ballast for testing: YW-HCS-102A





2 Instrument for testing: UI2000

3 Testing condition: Temperature:25±1℃ Humidity:30%~50%

4 UV-ray luminometer is tested by UVB-254 probe type of Beijing Normal University,The test values of different illuminance meters are different, and the data are from Youwei Light & Electricity.

Light Source
Quartz Tube
wavelength(nm)
253.7
Instrument for testing:
UI2000
Diameter
17mm
Base face length
533
Head material
aluminium
Single head or double head
Sigle-ended

The ozone free lamp emits 254nm UV light to kill microorganisms directly, ultraviolet photons harm the DNA molecules of living organisms in different ways. In one common damage event, adjacent thymine bases bond with each other, instead of across the “ladder”. This “thymine dimer” makes a bulge, and the distorted DNA molecules will not function properly.

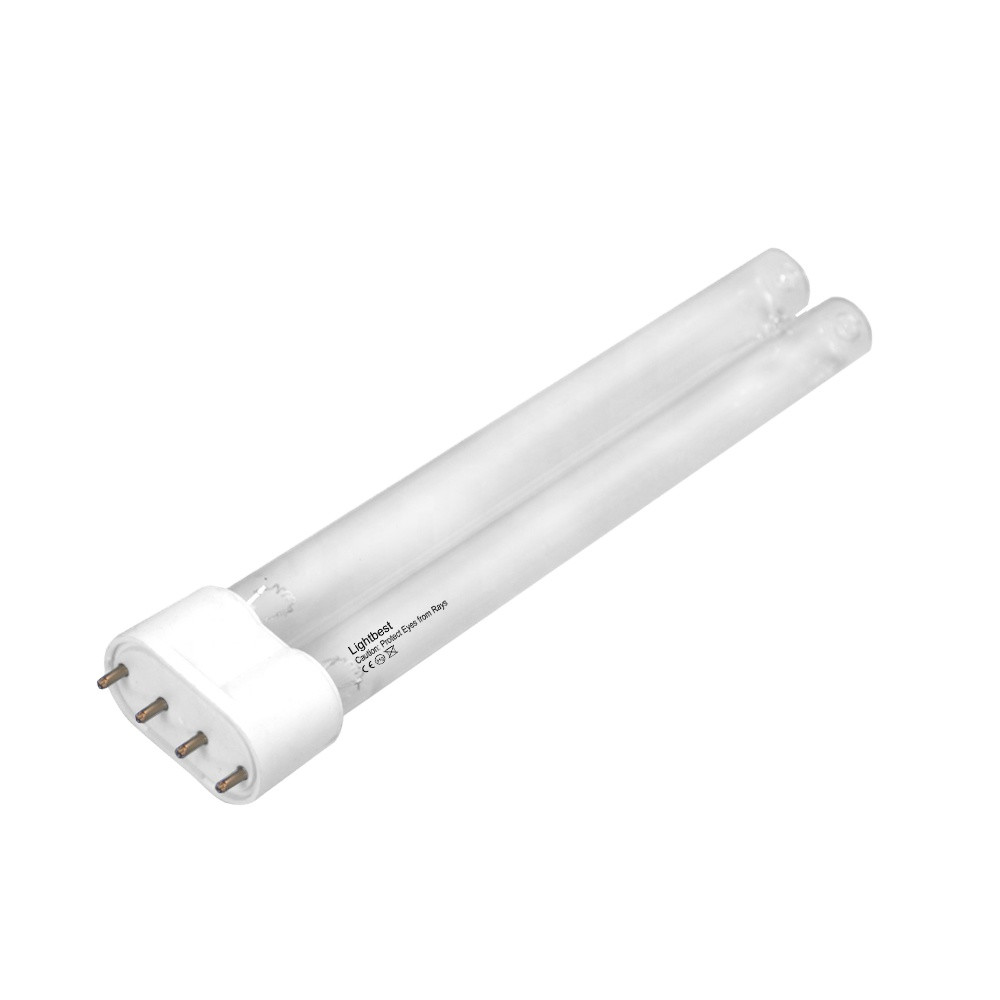

18W H shape lamp uvc 254nm ultraviolet light 2G11 base lamps

While the ozone generating lamp gives out 185nm UV light to react with oxygen gas in the air or water to form ozone. Ozone is able to destroy cells of microorganism, and it also serves as a kind of strong oxidant to kill biological tissues of microorganism. And based on UV photolysis, our ozone generating UV bactericidal lamps could completely decompose oil, remove fume and other peculiar odor.

The Eight Core Technologies

1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.
Application Areas
It could be applied in the electric appliance
such as dynamic air sterilizer,sterilization cabinet as well as the equipments such as the sterilizer,disinfectant devices,deodorizing apparatus and purifier. Operation rooms, sickness rooms. Medical disinfection and air clean machines.
UVC germicidal lamp are widely used in:
---hospital,medical centers,old homes,orphanages
---kindergartens,schools,high schools,universities
---restanrants and hotels ---food industry(meat,milk etc.)
