PL11 Potted Ballasts Lead Type 21W To 100W 4P SE UV Lamp Ballast

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: PL11-425-40
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Voltage: 198-264V Matched Tube: T5 T6
Input Voltage(V):: AC 220V( ± 10%) Wattage: 21W To 55W
Efficiency: >90% Luminous Efficacy(lm/w): 60
Electronic Ballast: For Economic UV Lamp Product Name: UV Lamp Electronic Ballast
Materia: Aluminum Alloy Power Factor: >0.98
UV Lamps Current: 0.38A To 0.54A
High Light:

PL11 Potted ballasts


4P SE UV Lamp Ballast


PL11 100W UV Lamp Ballast

Product Description

PL11 Potted ballasts lead type 21W to 100W 4P SE UV lamp ballast
Electronic Ballast (EB)
The electronic ballast is an inverter which can convert AC power supply into a high frequency AC power supply.
Two types of input voltage. One is low DC input power from DC12V to DC110V; another is AC input power from 24VAC to 277VAC.
Frequency 50/60Hz.
Two types of installation mode. One is all Built-in type and another is independent and built-in.
Three starting modes, Pre-heat, Instant and Rapid start
Suggest that the lead between electronic ballast and lamp tube is less than 5m.
Electronic ballast is a power component. Metal enclosure can be operated when the highest temperature is below 70 degree and
plastics enclosure can be below 60 degree. The lower temperature of ballast’s enclosure, the longer life of ballast.
Ballast case must be grounded and don’t short any two wires of the outputs.
Professional good match with UVC lamps for air purification, industrial water treatment, drinking water, etc..
Warning: The radiation of those lamps is harmful to eyes and skin, Protect your eyes and your skin against the Ultraviolet rays

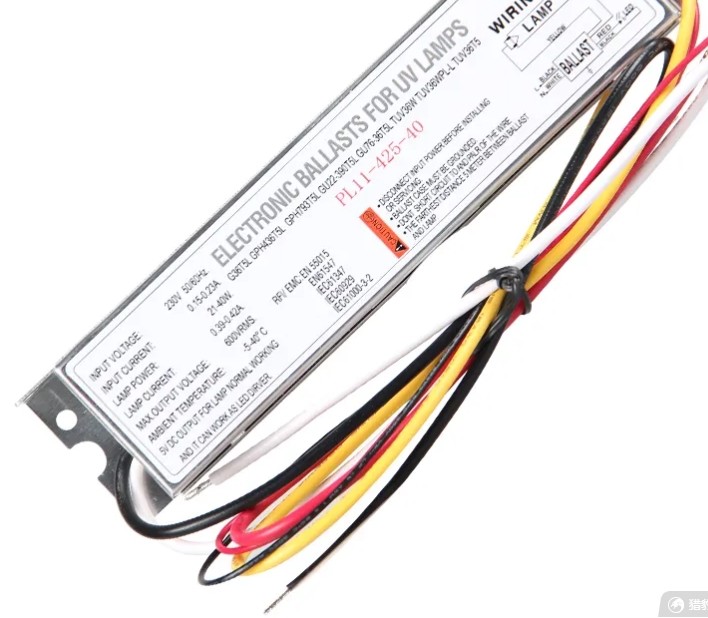

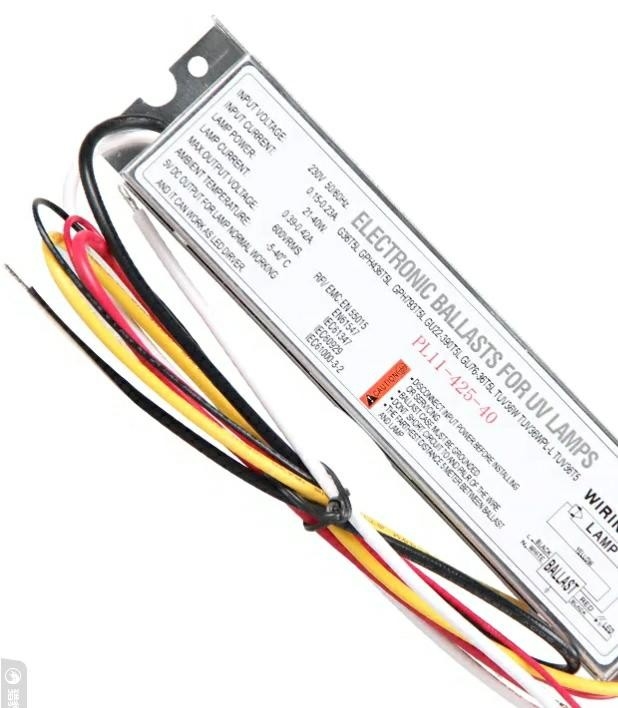

PL11 Potted Ballasts Lead Type 21W To 100W 4P SE UV Lamp Ballast 0PL11 Potted Ballasts Lead Type 21W To 100W 4P SE UV Lamp Ballast 1

4P SE UV lamp ballast

UV ballast with lamp current 0.39A to 0.85A

Factory prices UV electronic ballast with all kinds of model and wattage.

All kinds of AC/DC Voltage

Suitable for most of UV lamps as below mentioned lists.

1.Suitable for UV lamps






2.Technical specifications

Mains Voltage:110V/240VAC±10%

Mains Frequency:50/60Hz

Power Factor: >0.55

Efficiency: >90%

Operating Frequency: 40-60KHz

Dimensions: 165*42*26mm

3.Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault..

4.Installation requirement

Wire Gauge:0.5-1.0 mm2

5.Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.



All areas of applications includes UV lamps

Air purification

Industrial water treatment

Municipal water treatment

Product Name
Electronic ballast
Type of Lamp-house
We design and manufacture UVC ballasts for a wide range of germicidal ultraviolet lamps used in a variety of water, air, and surface purification devices. Our ballasts are essential to increasing the safety and working lifetime of UVC lamps. No matter the size, power, or lamp configuration required for your application, Our team of engineers will design and manufacture a ballast with the desired certifications to fit perfectly into your system. Our collaborative approach helps us serve as an extension of your engineering and design team.



Product name
Electronic ballast for uv lamps
230 v
Lamp quantity
1 pcs
Germicidal ultraviolet Lamps
1 years




UV ballast guaranteed to work with your UV germicidal system

* Guaranteed to work with your UV Germicidal Bulb.
* Comes complete with wiring diagram necessary to run your bulb(s)
* Industry leading 1 YEAR WARRANTY




Q1: What is your main product?

A: We focus on UV light lamp, UV sterilizer and related product.

Q2: Are you a Manufacturer and Trading Company?

A:We are a manufacturer of UV sterilizer and UV germicidal lamp with over 20 years' experiences in industy. We are able to provide you a perfect solution for your inquiry.

Q3: What is the minimum order quantity?

A: Our MOQ is 100pcs.

Q4:Can i get sample for testing?

A:Yes. Testing samples are charged. You only need to pay for the shipping.

Q5: Can i print logo on led light product?

A: Certainly. Please provide your logo design for checking.

Q6: What kind of shipping do you use to ship the products?

A: For small quantity order we ship by courier, this is the most reliable service in order to reach you promptly and safely. For big quantity order,we ship by sea or by air.

Q7: What is your payment?

A: Cash, T/T, L/C, Credit Card, Paypal etc.
