High power electronic UV lamp ballast 240W to 320W PS9 PWM Dimming type
Electronic Ballast (EB)
The electronic ballast is an inverter which can convert AC power supply into a high frequency AC power supply.
Two types of input voltage. One is low DC input power from DC12V to DC110V; another is AC input power from 24VAC to 277VAC.
Frequency 50/60Hz.
Two types of installation mode. One is all Built-in type and another is independent and built-in.
Three starting modes, Pre-heat, Instant and Rapid start
Suggest that the lead between electronic ballast and lamp tube is less than 5m.
Electronic ballast is a power component. Metal enclosure can be operated when the highest temperature is below 70 degree and
plastics enclosure can be below 60 degree. The lower temperature of ballast’s enclosure, the longer life of ballast.
Ballast case must be grounded and don’t short any two wires of the outputs.
Professional good match with UVC lamps for air purification, industrial water treatment, drinking water, etc..
Warning: The radiation of those lamps is harmful to eyes and skin, Protect your eyes and your skin against the Ultraviolet rays
|
|
Electronic ballast
|
|
|
Iron
|
|
|
240-320w
|
|
|
110-240V
|
|
|
all
|
|
|
PS9-AL-320P
|
|
|
Electric
|
We design and manufacture UVC ballasts for a wide range of germicidal ultraviolet lamps used in a variety of water, air, and surface purification devices. Our ballasts are essential to increasing the safety and working lifetime of UVC lamps. No matter the size, power, or lamp configuration required for your application, Our team of engineers will design and manufacture a ballast with the desired certifications to fit perfectly into your system. Our collaborative approach helps us serve as an extension of your engineering and design team.
|
Product name
|
Electronic ballast for uv lamps
|
|
Wattage75
|
240-320w
|
|
Voltage
|
230 v
|
|
Lamp quantity
|
1 pcs
|
|
Color
|
White
|
|
Application
|
Germicidal ultraviolet Lamps
|
|
Size
|
8*3.5*2.7cm
|
|
Brand
|
UV or OEM
|
|
Warranty
|
1 years
|
UV ballast guaranteed to work with your UV germicidal system
Features:
* Guaranteed to work with your UV Germicidal Bulb.

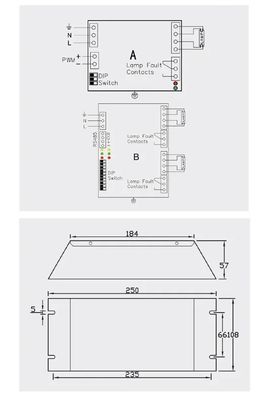

* Comes complete with wiring diagram necessary to run your bulb(s)
* Industry leading 1 YEAR WARRANTY
FAQ
Q1: What is your main product?
A: We focus on UV light lamp, UV sterilizer and related product.
Q2: Are you a Manufacturer and Trading Company?
A:We are a manufacturer of UV sterilizer and UV germicidal lamp with over 20 years' experiences in industy. We are able to provide you a perfect solution for your inquiry.
Q3: What is the minimum order quantity?
A: Our MOQ is 100pcs.
Q4:Can i get sample for testing?
A:Yes. Testing samples are charged. You only need to pay for the shipping.
Q5: Can i print logo on led light product?
A: Certainly. Please provide your logo design for checking.
Q6: What kind of shipping do you use to ship the products?
A: For small quantity order we ship by courier, this is the most reliable service in order to reach you promptly and safely. For big quantity order,we ship by sea or by air.
Q7: What is your payment?
A: Cash, T/T, L/C, Credit Card, Paypal etc.
