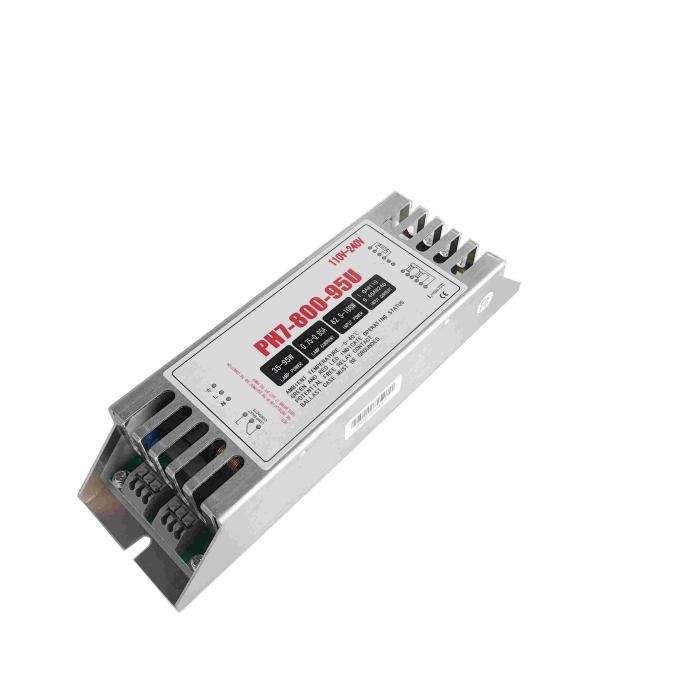

108W Germicidal Lamp Electronic Ballast UV Ballasts PH7-800-155U

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: PH7-800-155U
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Voltage:: 240V Power: 108W
Efficiency:: ≥80% Input Voltage Frequency: 50/60Hz
Application: 35-95 W Uv Tubes Feature: Steady Output
Tc-temperature: Max. 70 OC Max Lamp Power: 108W
Product Name: UV Lamp Electronic Ballast Materia: Aluminum Alloy
Power Factor: >98
High Light:

germicidal lamp electronic ballast PH7-800-155U

,

108W germicidal lamp electronic ballast

,

UV Ballasts PH7-800-155U


Product Description

35w UV Lamp Electronic Ballast Steady Output UV Light Ballast PH7-800-155U

35w-95w UVC Lamps Electronic Ballast UV Light Ballasts 12 Months Warranty





Select the right electric ballast

Be sure to select the appropriate model.

Since the core function of the ballast is to protect the UV lamp and prolong the service life. If the selected ballast does not match the parameters of the lamp, it is like a twisted melon - both parties are victims.

Therefore, we recommend that you seek the help of professional suppliers to assist in the selection to achieve the best efficiency. Blind choice will bring loss of time and money to the enterprise.

Product Description



Product name
Preheat start Electronic ballast for 35-95w uv lamps
Input Wattage
108w
Voltage
220 v -240v
Lamp quantity
1 pcs
Color
White
Application
Germicidal ultraviolet Lamps
Size
18.5*5.6*3.8 cm
Brand
UV or OEM
Warranty
2 years


Precautions
1. Instantaneous start V.S. Delay start

Some friends think that the selection of electronic ballasts for ultraviolet lamps is better than that of instant start than delayed start.

In fact, when matching low-power lamps, the impact is not very obvious, but when matching high-power UV germicidal lamps (such as 120W, 150W and 320W, etc.), the instantaneous start has a great impact on the service life of the UV lamp. This is because when the ultraviolet germicidal lamp starts, the required starting current is very large, which is easy to break down the lamp tube, and the delayed start reduces the instantaneous pressure through energy storage, which has a better protection effect on the lamp tube.

• PH7-800-95U: 1*GPH893T5HO,GPH846T5HO,GHO36T5,TUV95WHOPL-L, TUV75WHO, TUV60WHO,TUV55WHO,TUV36T5HO

Wiring diagram: A 2*GPH436T5HOTUVPL-L35WHO
Wiring diagram: B
■Features
• .Preheat start
• With indicator function. Green led indicates UV lamp operating
normally. Red led indicates UV lamp broken down, with functions of
on-off value (dry contacts)

Note for ordering
・ Input power cord should be changed into different national
standardized power cord. Such as GB, BIS, CE, SAA, etc.
Different power cord has different ordering number (must
check it carefully before ordering). Output line can also be
changed into 4*0.5 mm2,4*18#,5*18#, etc. Output line can
add waterproof connector, dust cover, hole plugs, detailed
information see the accessories list.
The power supply must be cut off before installing and
replacing the ballast.The connecting line between ballast
and lamp tube shall not exceed 5m





Product Presentation

Ballasts can be complicated. Nobody replaces ballasts regularly. Inevitably, ballasts are needed when you go to change out the UV bulb at your machine's recommended intervals when you realize that the new bulb is not lighting up or is flickering. Instead of an easy UV bulb switch, your maintenance just became a potentially complicated electronic ballast search and installation.
Finding the right ballast is the first hurdle but not the only one. Even after you take receipt of the ballast, you have to figure
out how to wire them. Depending on the bulb type and the number of bulbs in your system, the wiring can change completely. It is not incredibly complicated, but more troublesome than it is worth for the majority of UV air or water purification system operators.
we want to take the guesswork out of ballast replacement. With this ballast, you are guaranteed to receive the right
ballast with the right wiring diagram. Any questions, and we'll be here every step along the way to help you out.



Product Name
Electronic ballast

Material
Iron

Inpurt Power
108w

Voltage
220

Type of Lamp-house
all

Model
PH7-800-95U

Style
Electric
We design and manufacture UVC ballasts for a wide range of germicidal ultraviolet lamps used in a variety of water, air, and surface purification devices. Our ballasts are essential to increasing the safety and working lifetime of UVC lamps. No matter the size, power, or lamp configuration required for your application, Our team of engineers will design and manufacture a ballast with the desired certifications to fit perfectly into your system. Our collaborative approach helps us serve as an extension of your engineering and design team.
Company Introduction

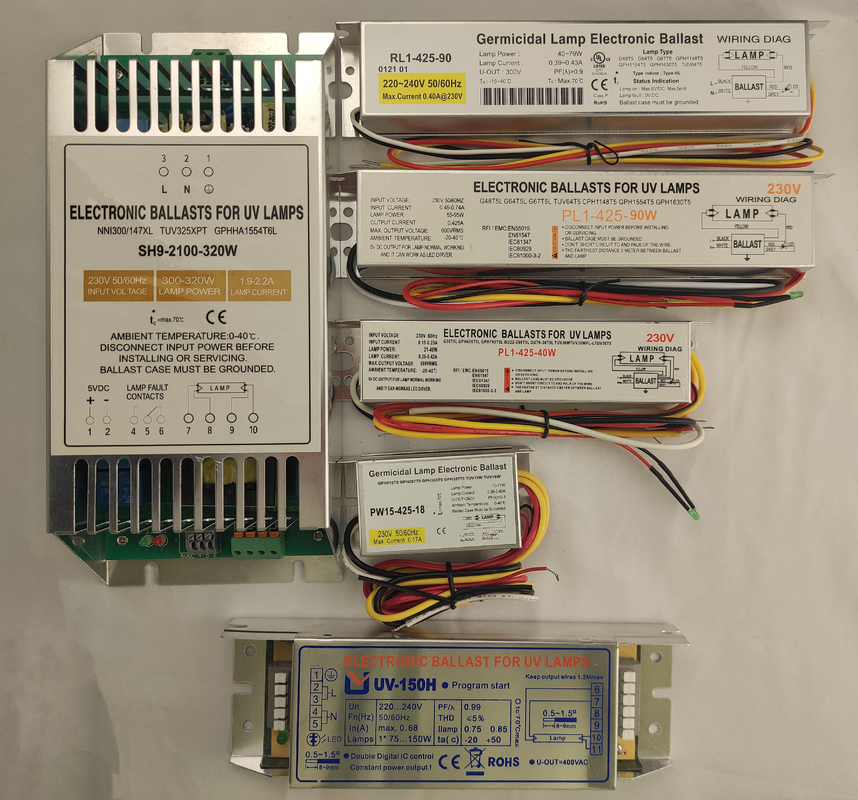

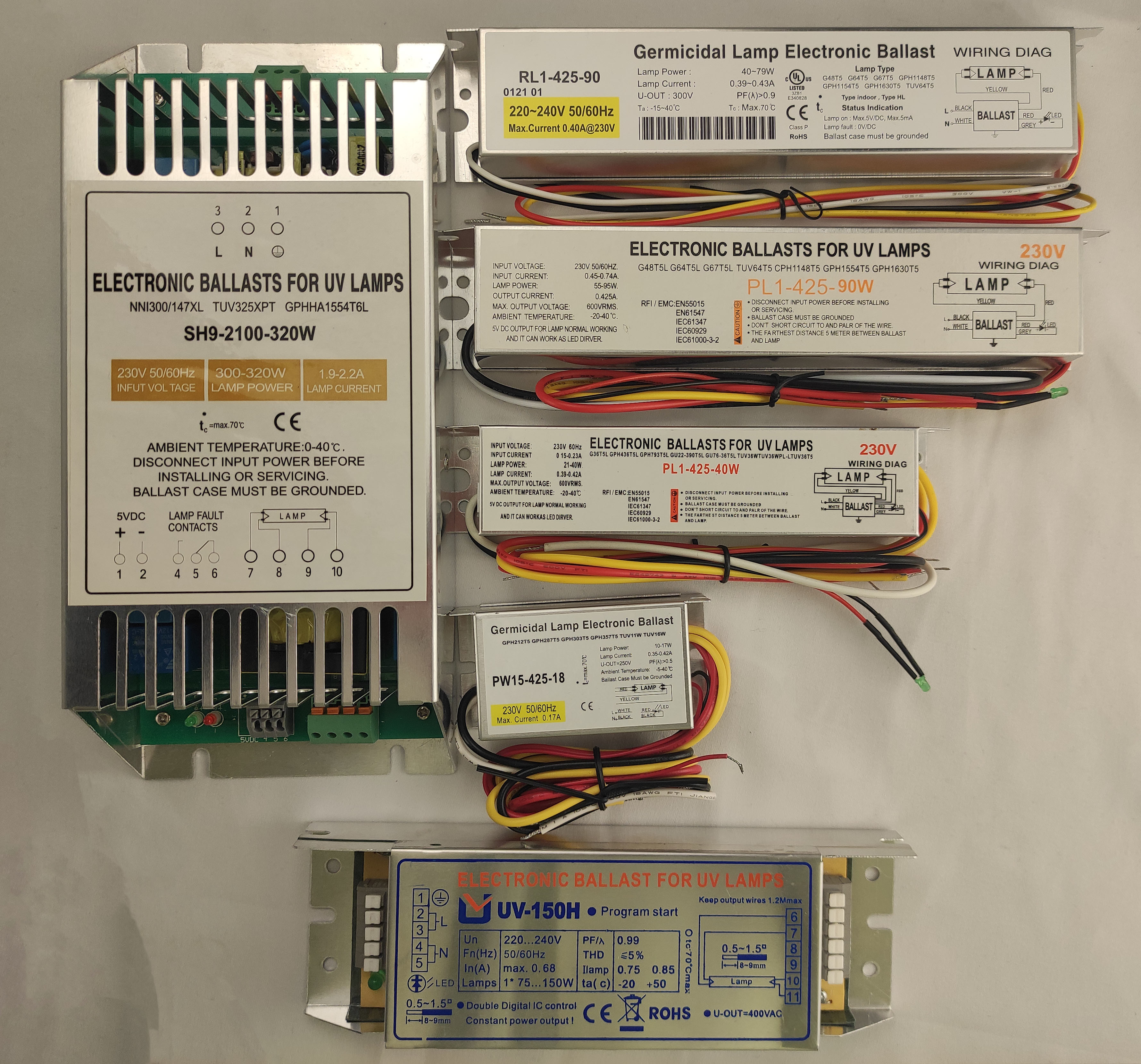

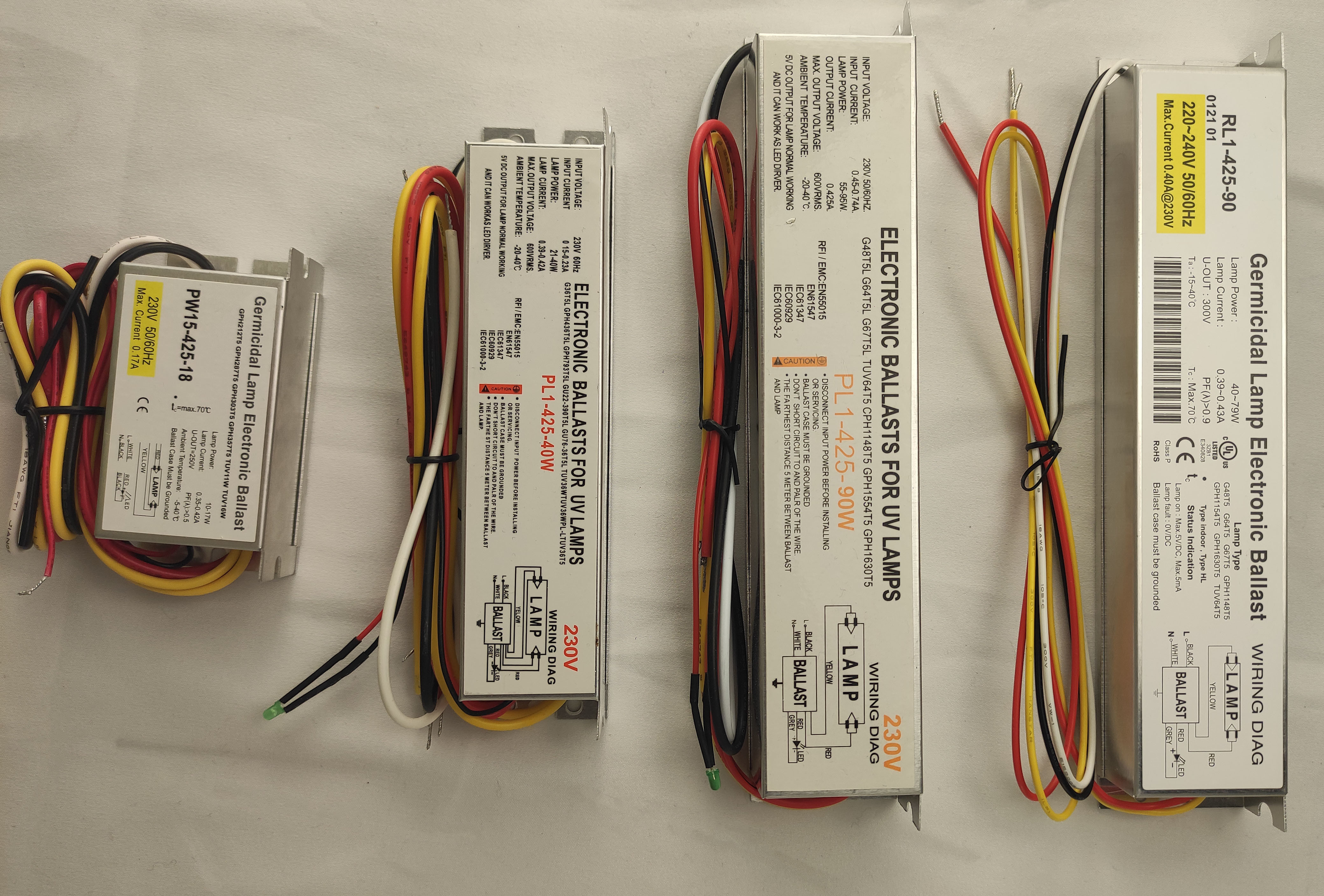

108W Germicidal Lamp Electronic Ballast UV Ballasts PH7-800-155U 0108W Germicidal Lamp Electronic Ballast UV Ballasts PH7-800-155U 1108W Germicidal Lamp Electronic Ballast UV Ballasts PH7-800-155U 2108W Germicidal Lamp Electronic Ballast UV Ballasts PH7-800-155U 3





Model
Input
Voltage (V)
Input
Power (W)
Input
Current (A)
Lamp
Current (A)

Start mode
PW11-425-40D12
10.8-13.2
48
4.0 @ 12V
0.35-0.42
Rapid
PW11-425-40D24
21.6-26.4
48
2.0@24V
0.35-0.42
Rapid
PH15-425-18D12
10.8-13.2
24
2.0@12V
0.35-0.42
Pre-heat
PH15-425-18D24
21.6-26.4
24
1.0@24V
0.35-0.42
Pre-heat
PH15-180-10D12
10.8-13.2
12
1.0@12V
0.15-0.18
Pre-heat
PH15-180-10D24
21.6-26.4
12
0.5@24V
0.15-0.18
Pre-heat
PL15-425-18D12
10.8-13.2
24
2.0@12V
0.35-0.42
Instant
PL15-425-18D24
21.6-26.4
24
1.0@24V
0.35-0.42
Instant
PL15-180-10D12
10.8-13.2
12
1.0@12V
0.15-0.18
Instant
PL15-180-10D24
21.6-26.4
12
0.5@24V
0.15-0.18
Instant
PH7-425-40D24
10.8-26.4V
48W
2.0@24V
0.34-0.4
Pre-heat
PH7-800-40D24
10.8-26.4V
48W
2.0@24V
0.75-0.85
Pre-heat
We can make customized products !!!
Specifications:
1.high frequency working status,fast start without flickering;
2.Low temperature rising, no noise, long life span,and fire resistant;
3.Could shut off automatically when the tube is time over,or woring in abnormal status,and it will restart change the tube;
4.Power:18W-40W;
5.Material:copper wire or aluminum wire;
6.Small size,light weight;
7.Low power consumption
Product Display
150H UV Lamp Electronic Ballast 24V DC For PW11-425-40D24 1 Output parameters PW11-425-40D24
Input voltage range Max 48W
Output current 0.35A~0.42A
Voltage 1.6~26.4V
Start time ≤ 8mS
24V
Use environment ta) - 20℃…+ 70℃



Installation case:

1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced. 3.In addition, the voltage of the ballast must match the power supply voltage.
150H UV Lamp Electronic Ballast 24V DC For PW11-425-40D24 2

Advantages:

Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance

1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement

150H UV Lamp Electronic Ballast 24V DC For PW11-425-40D24 3150H UV Lamp Electronic Ballast 24V DC For PW11-425-40D24 4



150H UV Lamp Electronic Ballast 24V DC For PW11-425-40D24 5

1 KITCHEN FUME PURIFICATION
2 DEODORIZATION AND PURIFICATION TREATMENT
3 REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS
Light Source
Quartz Tube
wavelength(nm)
253.7
Rated Power
200W
Diameter
15mm
Base face length
1100
Head material
ceramics
Single head or double head
H shape


The Eight Core Technologies

1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.


Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.





FAQ



Q: What's your advantage compared with other suppliers?

A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.



Q:What's my consideration when I choose one model of uv lamps?

A: Watts,Length,Volt and current about the electric ballast.



Q:What are the types of use of different UVC lamps?

A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.



Q:What is the difference between normal and amalgam lamps?

A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .



Q:How does the generated OZONE affect the health of people?

A:Excessive ozone can cause human organ failure.



Q:Can you accept the OEM or ODM?

A: Yes.
