air purification 12VDC Electronic UV Lamp Ballast UVC 3W For UV Lamp

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: DC12V-10V-3W
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Model: DC12V Power: 3w
U810Lamp Current: 280-350mA Z1554Current: 0.35A
Lamp: 18-30kHz Max Lamp Power: 3W
USE: Tuv11W Maximum Input Current: 0.7A Max @220Vac
Maximum Input Power: ≥ 150W @220Vac Power Factor: ≥ 0.95 @220Va
High Light:

ballast uvc 3W


12VDC electronic uv lamp ballast


electronic uv lamp ballast 3W

Product Description

UV Ballast 12VDC Electronic 3W ballast UV small power killing bacteria

12vdc electronic ballast 10W UVC Ballast for uv lamp


UV Ballast


Product Description


(1). Feature


1. Electronic ballast storage characteristics and consistent performance.

2. The electronic ballast has a strong reliability, which can be used in the process of

use and reduce the early failure.

3. The electronic ballast also has good startup characteristics, which greatly improves

the lamp life.

4. Beautiful appearance, white iron shell, suitable for various types of lamps or lamps.

5. The compactness of the electronic ballast is strengthened, and the design of the

lamp and the ignition point is more compact.


(2). Application

Uv sterilization, disinfection cabinet, air purification, water

treatment, industrial catalysis.

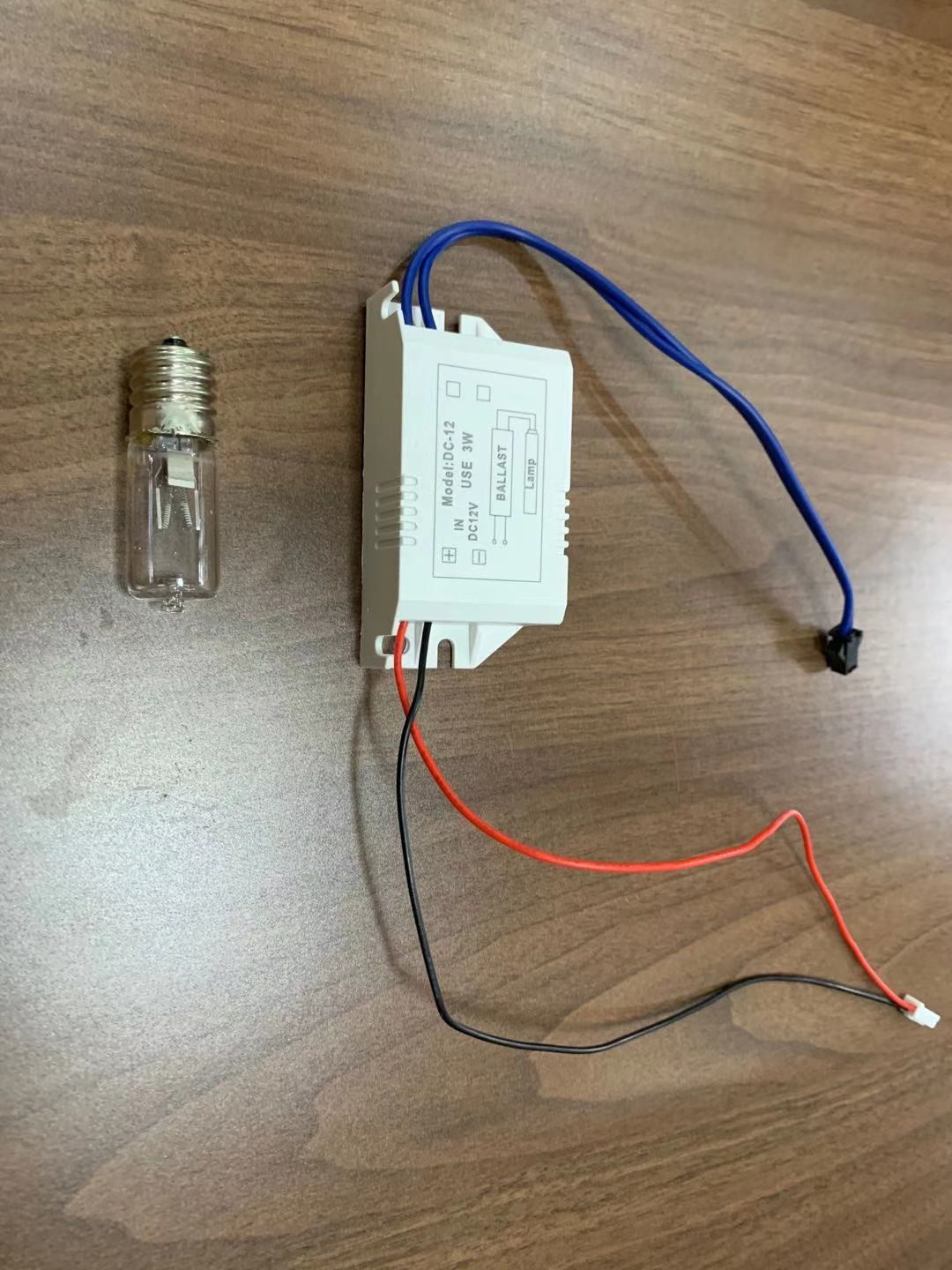

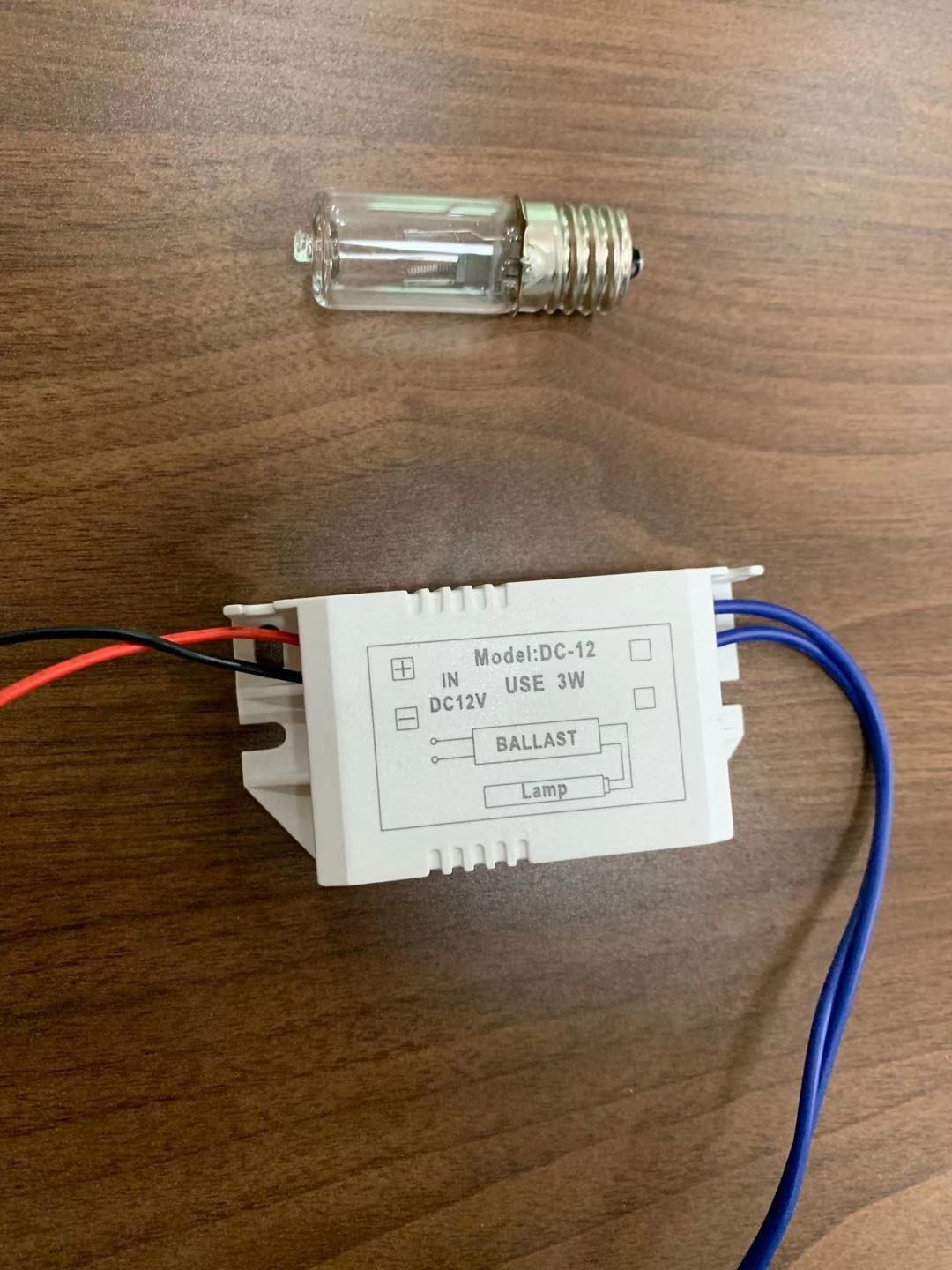

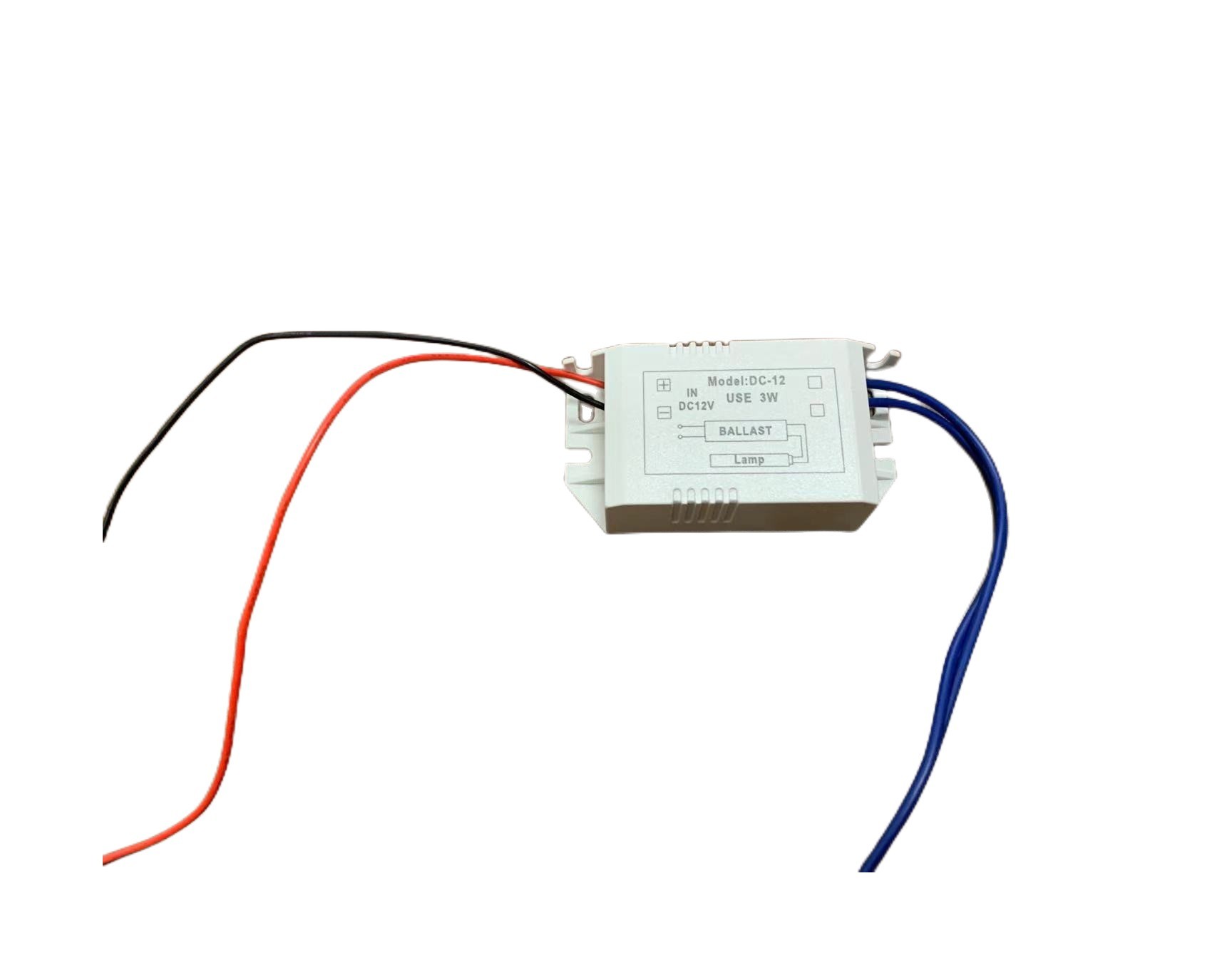

UV Ballast 12VDC Electronic 3W ballast UV small power killing bacteria 0UV Ballast 12VDC Electronic 3W ballast UV small power killing bacteria 1UV Ballast 12VDC Electronic 3W ballast UV small power killing bacteria 2



Product Display


UV Ballast 12VDC Electronic 3W ballast UV small power killing bacteria 3

Output parameters DC12
Input voltage range Max 3W
Input current 0.35A
Voltage 12V
Start time ≤ 8mS
Use environment ta) - 5℃…+ 40℃


Installation case:

1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced. 3.In addition, the voltage of the ballast must match the power supply voltage.


l Technical specifications


Lamp Types:GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W


l Technical specifications

Efficiency: >70%

Operating Frequency: 40-70KHz


Max.cable length between ballasts and lamp:1.5m

l Installation requirement

Wire Gauge:0.5-1.0mm2

LED specification:VF=1.8-3.6V LF=20-50mA

l Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.


Don’t short any two wires of the four outputs.


l For applications with less than one switch-on cycle per day


(other otherwise preheat start ballasts are recommended)


Lamp filament must be suitable for instant start operation,ask lamp manufacturer.


l Features




Lamp status indication via DC signal output.


DC3~6V 5mA:lamp on. DC 0~0.8V:lamp fault or on lamp. Connect LED


l Applications


All areas of applications include Tanning UV lamps:


=>Air purification




=>Domestic drinking water







Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance

1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement



UV Ballast 12VDC Electronic 3W ballast UV small power killing bacteria 4


The Eight Core Technologies

1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.

Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.





Q: What's your advantage compared with other suppliers?

A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.


Q:What's my consideration when I choose one model of uv lamps?

A: Watts,Length,Volt and current about the electric ballast.


Q:What are the types of use of different UVC lamps?

A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.


Q:What is the difference between normal and amalgam lamps?

A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .


Q:How does the generated OZONE affect the health of people?

A:Excessive ozone can cause human organ failure.


Q:Can you accept the OEM or ODM?

A: Yes.
