H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W UVC Lamp Driver

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH
Model Number: UV- 150H
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Name: UV-150H Power: 150w
Tube: U810 Length: Z1554
Input: 220V Input Voltage Range: 170V- 264V
Input Voltage Frequency: 50/60Hz Maximum Input Current: 0.7A Max @220Vac
Maximum Input Power: ≥ 150W @220Vac In(A): 0.68
USE: H SHAP
High Light:

H Shape Germicidal Lamp Electronic Ballast

,

Electronic Ballast For UV Lamps 150W

,

150W UVC Lamp Driver


Product Description

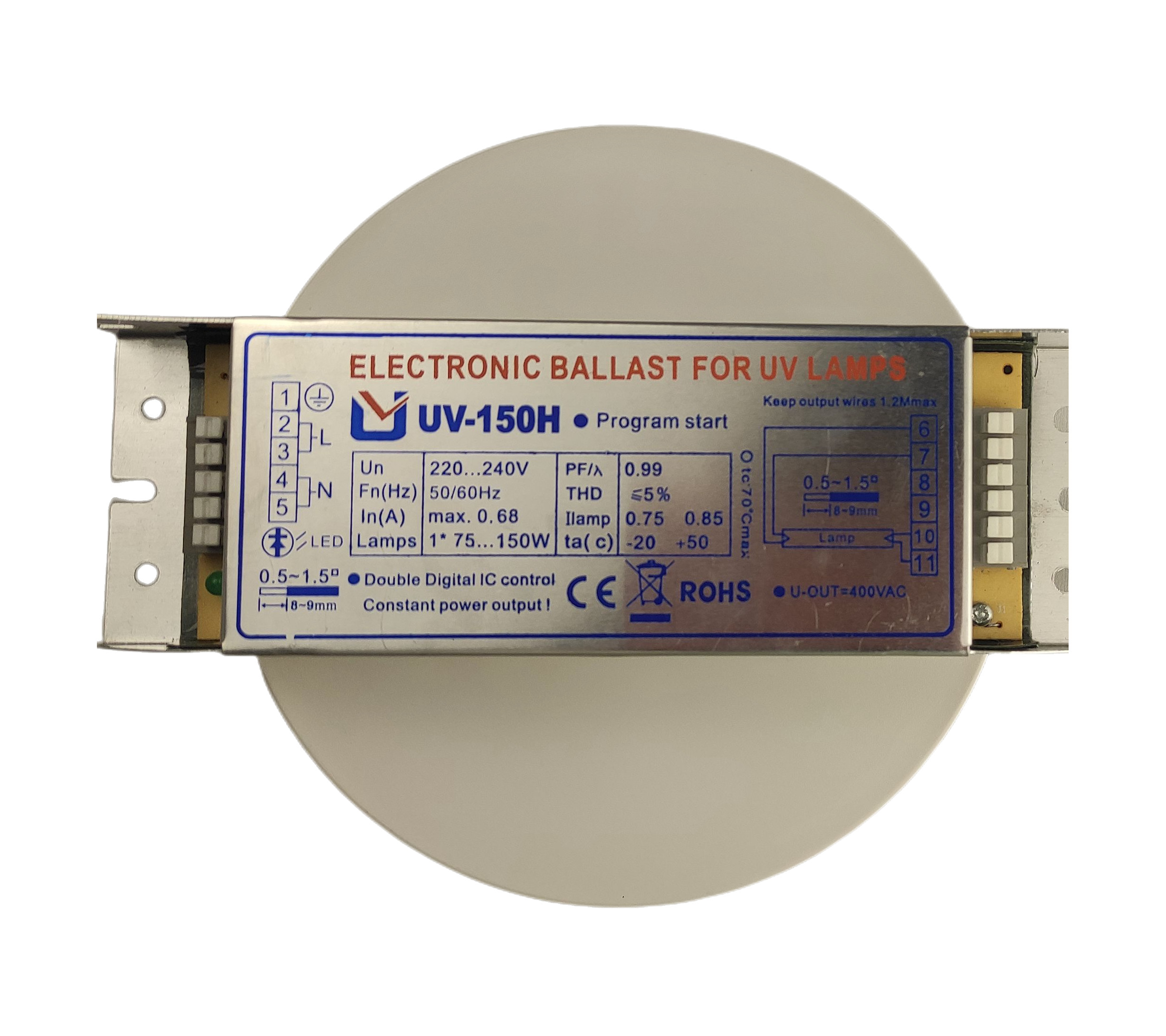

H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W UVC lamp Driver



Electronic Ballast For UV LAMPS

H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W 0



The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy.
Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.
Product Display
H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W 1 Output parameters UV- 150H
Input voltage range 120W- 150W Max @220Vac
Output current 1000MA @170V- 264Vac
working frequency < 40KHz @220Vac
Start time ≤ 8mS
175V
Use environment ta) - 20℃…+ 50℃



Installation case:

1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced. 3.In addition, the voltage of the ballast must match the power supply voltage.


Advantages:

Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance

1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement

H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W 1H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W 3H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W 4H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W 5H Shape Germicidal Lamp Electronic Ballast For UV Lamps 150W 6



1 KITCHEN FUME PURIFICATION
2 DEODORIZATION AND PURIFICATION TREATMENT
3 REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS
Light Source
Quartz Tube
wavelength(nm)
253.7
Rated Power
200W
Diameter
15mm
Base face length
1100
Head material
ceramics
Single head or double head
H shape


The Eight Core Technologies

1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service


Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.





FAQ



Q: What's your advantage compared with other suppliers?

A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.



Q:What's my consideration when I choose one model of uv lamps?

A: Watts,Length,Volt and current about the electric ballast.



Q:What are the types of use of different UVC lamps?

A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.



Q:What is the difference between normal and amalgam lamps?

A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .



Q:How does the generated OZONE affect the health of people?

A:Excessive ozone can cause human organ failure.



Q:Can you accept the OEM or ODM?

A: Yes.
