320W Dimming Electronic Ballast For Double Amalgam Germicidal Lamp Reactor
320 dimming type 320W 500w gphha1554t6l uvc electronic ballast double amalgam germicidal lamp reactor
The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.
|
|
Output parameters |
PW11-425-40D24 |
| Input voltage range |
Max 320W |
| Input current |
1.9-2.2A |
| Voltage |
230V |
| Start time |
≤ 8mS |
| 230V |
| Use environment |
ta) - 20℃…+ 40℃ |
Installation case:
1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced. 3.In addition, the voltage of the ballast must match the power supply voltage.
Lamp Types:GPHA1554T6 GPHHA1000T6 GPHHA1554T6 NNL200/107XL NNL300/147XL TUV325WXPT
l Technical specifications
Mains Voltage:220-277VAC±10%
Mains Frequency:50/60Hz
Power Factor: >0.98
Efficiency: >91%
Operating Frequency: 28-80KHz
Starting:Preheat
Dimensions:250*141*50mm

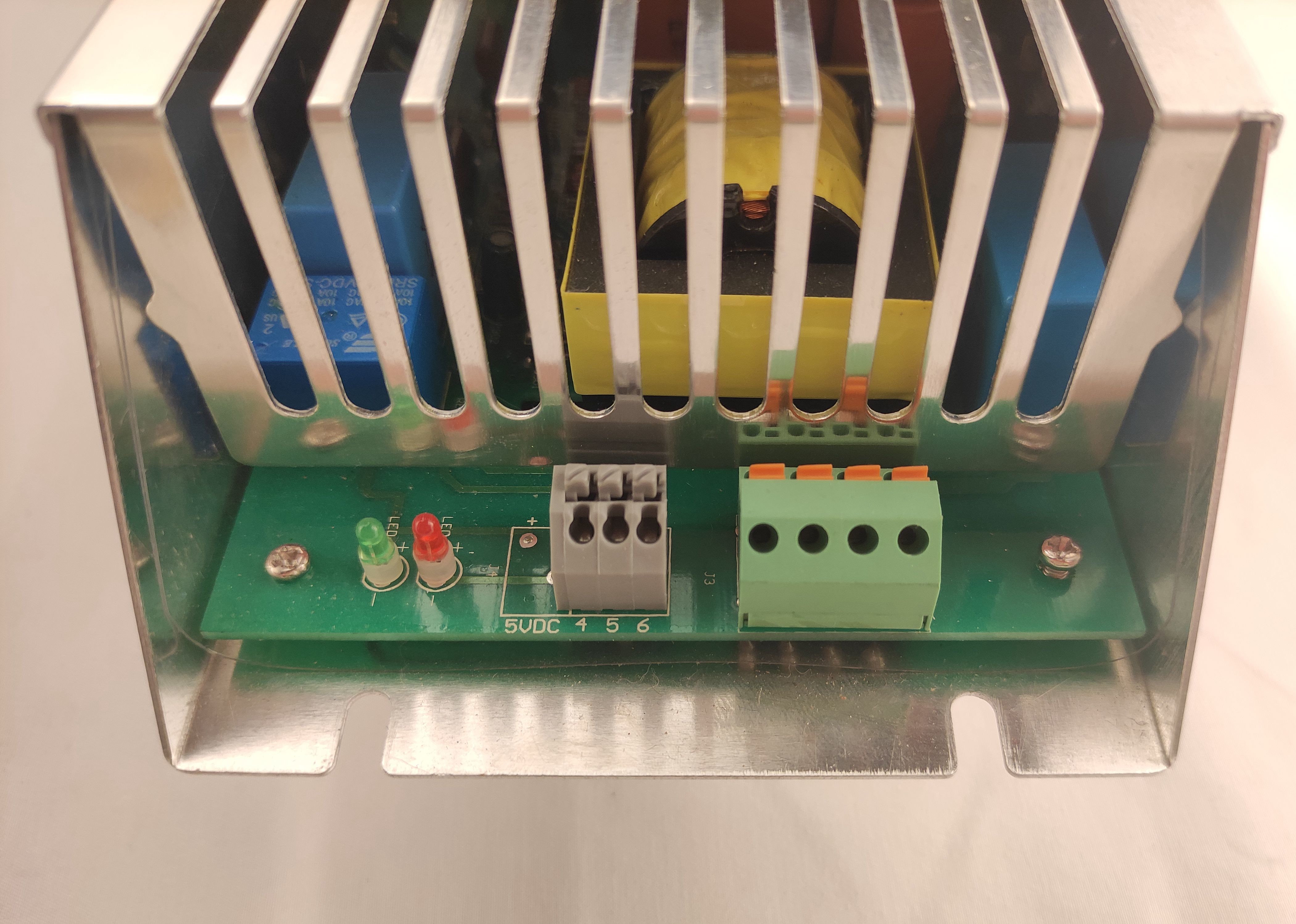

l Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
l Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault.
l Installation requirement
Wire Gauge:0.5-1.5mm2
Max.cable length between ballasts and lamp:5m
Relay contacts:potential free,load:50…500mA at 24…230V AC;
50…500mA at 5…60V DC
l Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
l Features
RS485 dimmable unction:The lamp power can be adjusted from 60% to 100%.
| Type |
Input Power
(W)
|
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight
(kg)
|
Packing
(mm)
|
Qty ( pecs ) |
GW (kg) |
|
PS10-AL-2/320
|
692 |
3.07 |
240~325 |
1.8~2.1 |
1.16 |
450*280*190 |
9 |
10.5 |
Advantages:
Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance
1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement
The Eight Core Technologies
1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.
Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.
Q: What's your advantage compared with other suppliers?
A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.
Q:What's my consideration when I choose one model of uv lamps?
A: Watts,Length,Volt and current about the electric ballast.
Q:What are the types of use of different UVC lamps?
A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.
Q:What is the difference between normal and amalgam lamps?
A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .
Q:How does the generated OZONE affect the health of people?
A:Excessive ozone can cause human organ failure.
Q:Can you accept the OEM or ODM?
A: Yes.
