24V DC UV Sterilizer Ballast 18w 4 Pin For T5 Ballast UV Lamp Driver

Basic Information
Place of Origin: Zhejiang, China
Brand Name: UV, Yoway
Certification: CE,ROSH

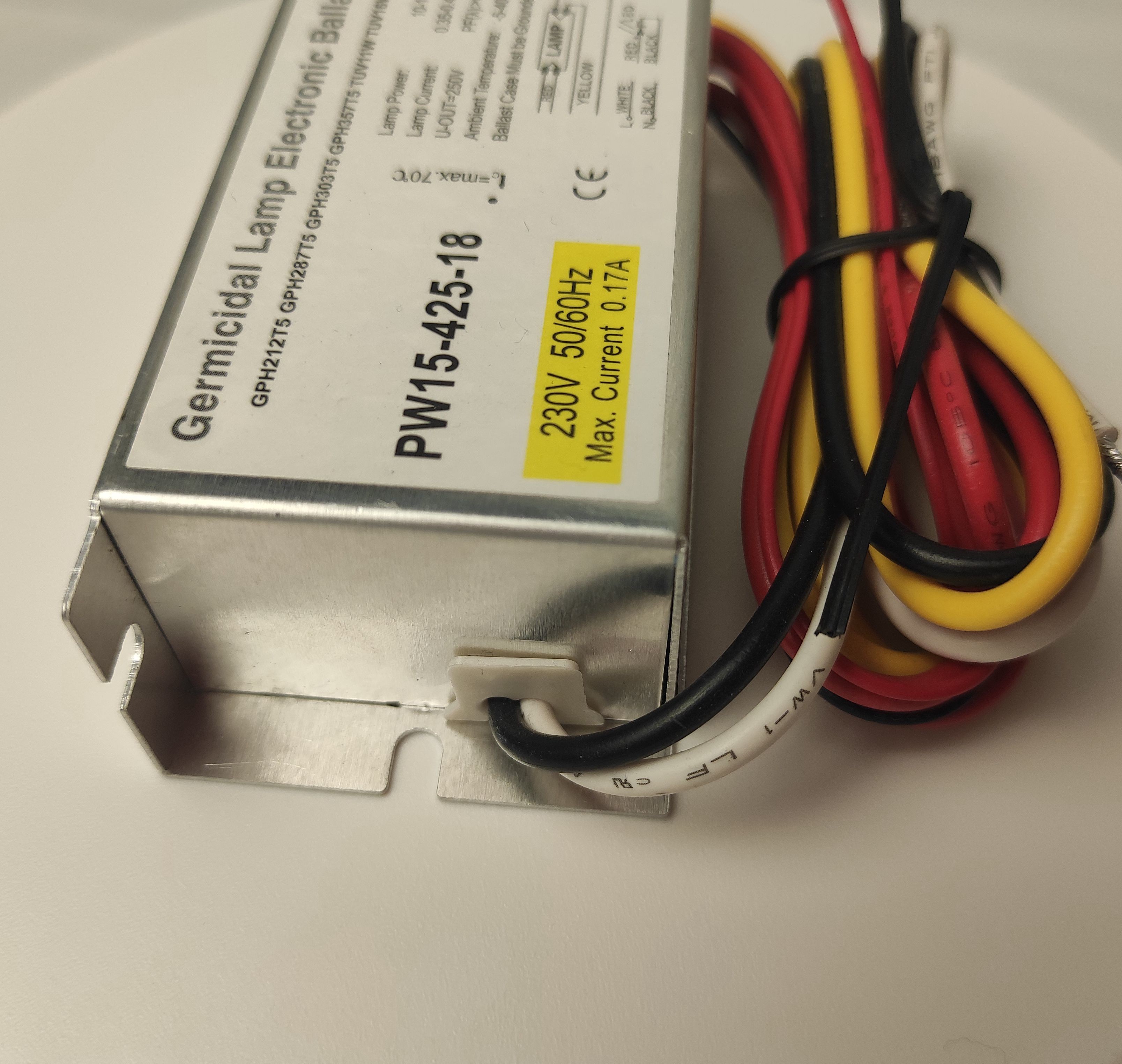

Model Number: PW15-425-18
Minimum Order Quantity: 10 pcs
Price: $6-$45/SET
Packaging Details: paper box packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Voltage:: 50/60Hz Power: 10-17W
Tube: Gph212t5 Current:: 0.17
USE: Tuv11W Input Voltage Range: 170V- 264V
Input Voltage Frequency: 50/60Hz Maximum Input Current: 0.7A Max @220Vac
Maximum Input Power: ≥ 24W @220Vac Power Factor: ≥ 0.95 @220Va
High Light:

uv sterilizer ballast 18w 4 Pin

,

24V DC uv sterilizer ballast

,

T5 Ballast UV Lamp Driver


Product Description

24V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 ballast UVC lamp Driver

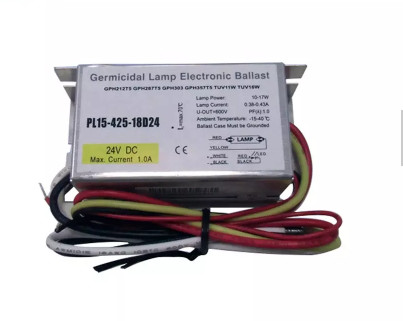

PL15-425-18D24 input 12V 24V dc uv sterilizer lamp ballast 18w 4 pin uvc light electronic ballast

Product Description

The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.



There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.

24V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 024V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 124V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 224V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 324V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 4






Product Display



24V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 2

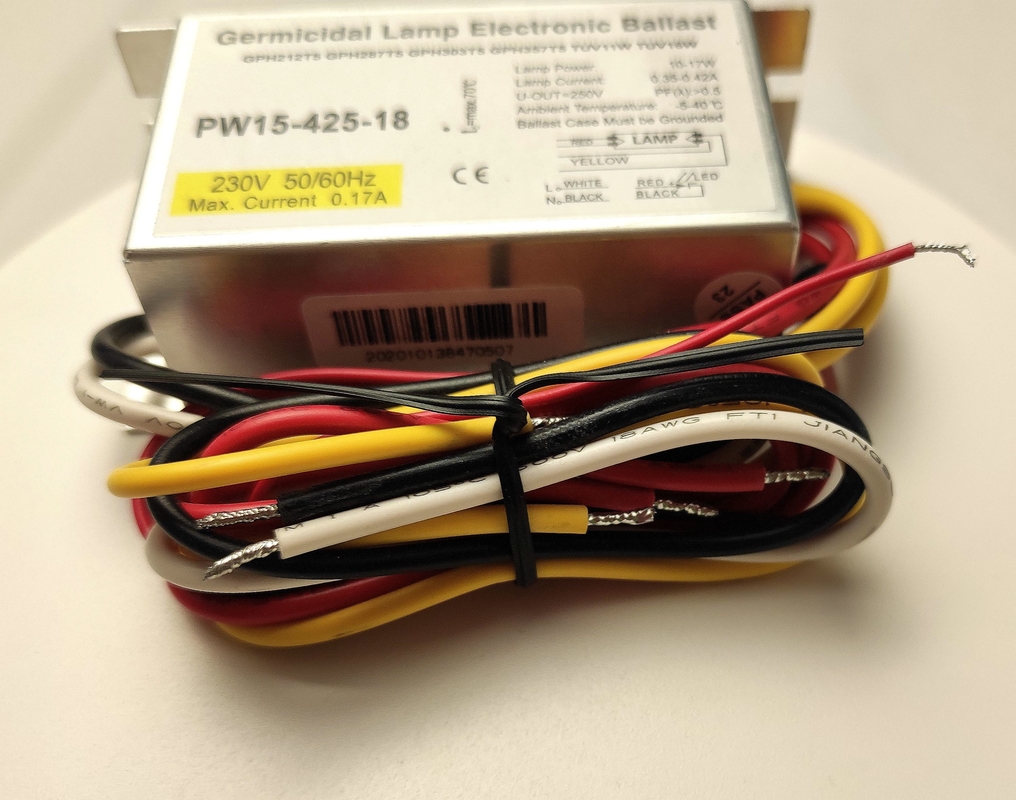

Output parameters PPW15-425-18
Input voltage range Max 17W
Input current 0.35-0.42A
Voltage 230V
Start time ≤ 8mS
230V
Use environment ta) - 5℃…+ 40℃



Installation case:

1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced. 3.In addition, the voltage of the ballast must match the power supply voltage.




l Technical specifications



Lamp Types:GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W



l Technical specifications

Efficiency: >70%

Operating Frequency: 40-70KHz

Dimensions:85*43*27mm

Max.cable length between ballasts and lamp:1.5m

l Installation requirement

Wire Gauge:0.5-1.0mm2

LED specification:VF=1.8-3.6V LF=20-50mA

l Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.



Don’t short any two wires of the four outputs.



l For applications with less than one switch-on cycle per day



(other otherwise preheat start ballasts are recommended)



Lamp filament must be suitable for instant start operation,ask lamp manufacturer.



l Features



Starting:Instant



Lamp status indication via DC signal output.



DC3~6V 5mA:lamp on. DC 0~0.8V:lamp fault or on lamp. Connect LED



l Applications



All areas of applications include Tanning UV lamps:



=>Air purification



=>Aquarium



=>Domestic drinking water





Type Input Voltage(V)

Input Power

(W)

Input Current (A) Power Per Lamp(W) Lamp Current(A)

Weight

(kg)

Packing

(mm)

Qty ( pcs ) GW (kg)
PL15-180-10D24 21.4~26.4 5.7-11.5 0.48A@24V 4-8 0.16-0.18 0.15 450*280*190 100 15.5
PL15-350-15D24 21.4~26.4 21.4 0.89A@24V 15 0.30-0.35 0.15 450*280*190 100 15.5
PL15-425-18D24 21.4~26.4 14.3-24.3 1.0A@24V 10-17 0.35-0.42 0.15 450*280*190 100 15.5
PL15-180-10D12 10.8~13.2 5.7-11.5 0.96A@12V 4-8 0.16-0.18 0.15 450*280*190 100 15.5
PL15-350-15D12 10.8~13.2 21.4 1.78A@12V 15 0.30-0.35 0.15 450*280*190 100 15.5
PL15-425-18D12 10.8~13.2 14.3-24.3 2.0A@12V 10-17 0.35-0.42 0.15 450*280*190 100 15.5









Advantages:

Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance

1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement





1 KITCHEN FUME PURIFICATION
2 DEODORIZATION AND PURIFICATION TREATMENT
3 REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

24V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 724V DC Electronic UVC Lamp Ballast Sterilizer 18w 4 Pin For T5 8



The Eight Core Technologies

1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.


Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.





FAQ



Q: What's your advantage compared with other suppliers?

A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.



Q:What's my consideration when I choose one model of uv lamps?

A: Watts,Length,Volt and current about the electric ballast.



Q:What are the types of use of different UVC lamps?

A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.



Q:What is the difference between normal and amalgam lamps?

A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .



Q:How does the generated OZONE affect the health of people?

A:Excessive ozone can cause human organ failure.



Q:Can you accept the OEM or ODM?

A: Yes.
