220V 150W Uvc Ballast UV- 150H For U810 Z1554 Lamp Supporting Ballast

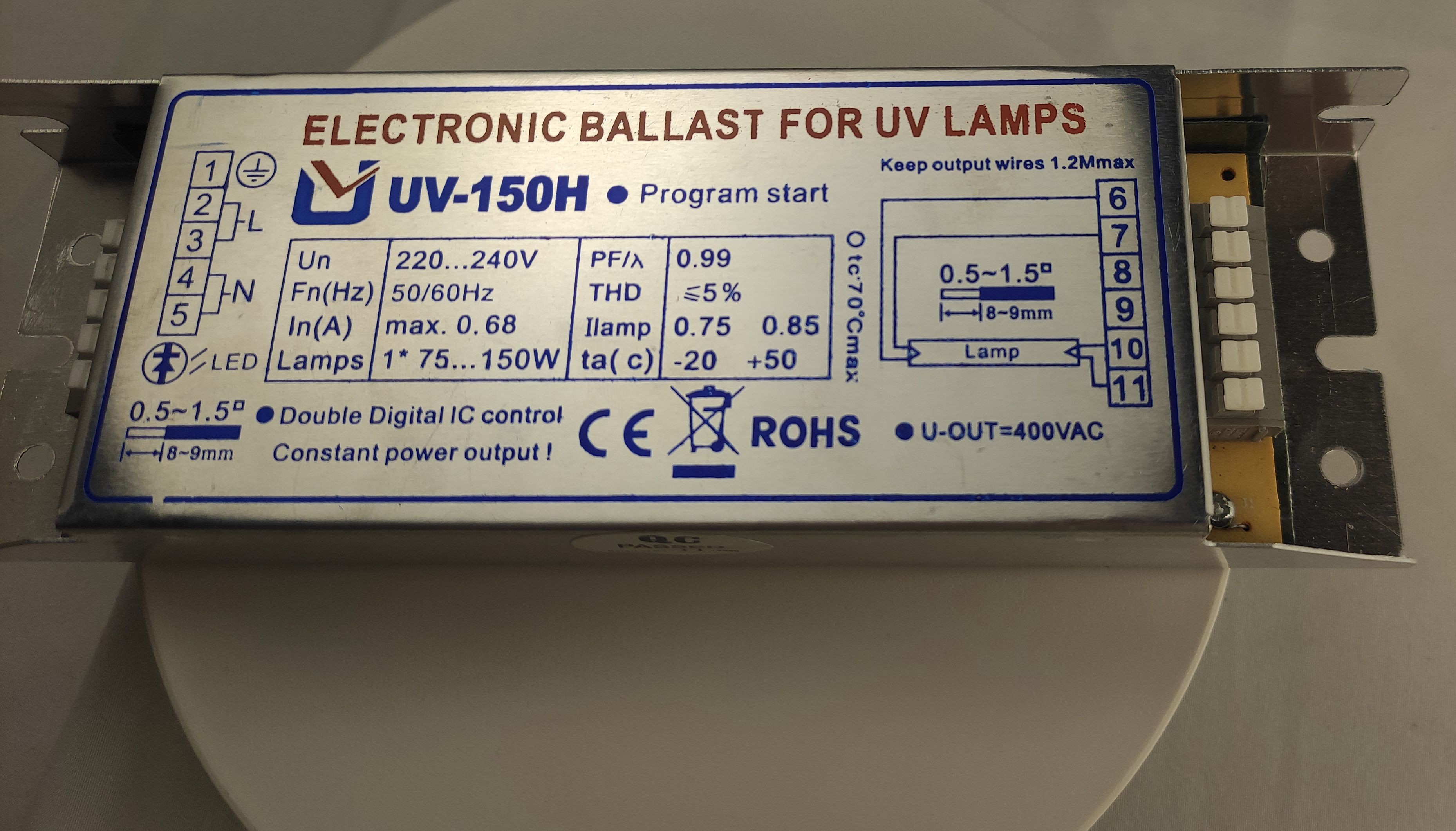

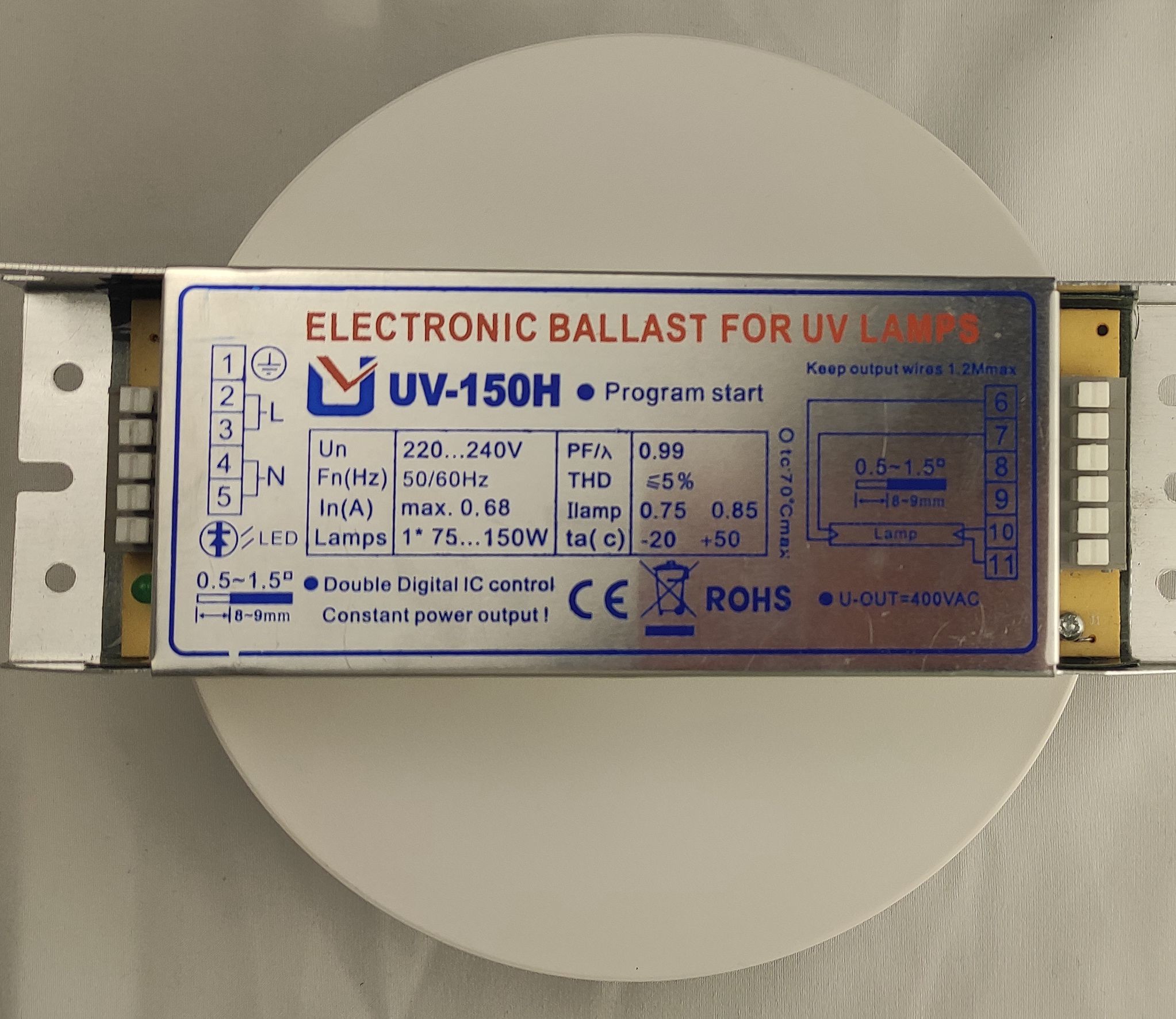

UV- 150H ballast for U810 / Z1554
|
Output parameters |
UV- 150H |
| Input voltage range |
120W- 150W Max @220Vac |
| Output current |
1000MA @170V- 264Vac |
| working frequency |
＜ 40KHz @220Vac |
| Start time |
≤ 8mS |
| 175V |
| Use environment |
ta) - 20℃…+ 50℃ |
Advantages:
Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance
1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement
|
Light Source
|
Quartz Tube
|
|
wavelength(nm)
|
253.7
|
|
Rated Power
|
200W
|
|
Diameter
|
15mm
|
|
Base face length
|
1100
|
|
Head material
|
ceramics
|
|
Single head or double head
|
H shape
|
The Eight Core Technologies
1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.
Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.
Q: What's your advantage compared with other suppliers?
A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.
Q:What's my consideration when I choose one model of uv lamps?
A: Watts,Length,Volt and current about the electric ballast.
Q:What are the types of use of different UVC lamps?
A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.
Q:What is the difference between normal and amalgam lamps?
A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .
Q:How does the generated OZONE affect the health of people?
A:Excessive ozone can cause human organ failure.
Q:Can you accept the OEM or ODM?
A: Yes.
